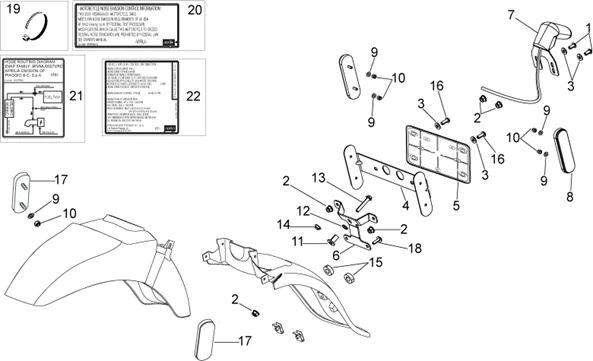

Vehicle Exploded View - APRILIA SCARABEO 400 Light 2006-2008 APRILIA

Chassis : 28.55 USA VERSION
Usa version
Search
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340

1
P2R reference P2R reference 71864
Maker reference Maker reference AP8150340

SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

2
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 5

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

3
P2R reference P2R reference 71927
Maker reference Maker reference AP8152181

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

More information

Quantity required : 4

AP8134677 - SUPPORT CATADIOPTRE;

4
P2R reference P2R reference 97074
Maker reference Maker reference AP8134677

AP8134677-BRACKET CATADIOPTRE

More information

Quantity required : 1

BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034

5
P2R reference P2R reference 71801
Maker reference Maker reference AP8149034

BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034

More information

Quantity required : 1

854566 - SUPPORT

6
P2R reference P2R reference 39848
Maker reference Maker reference 854566

854566 - SUPPORT

More information

Quantity required : 1

854590 - FEU DE PLAQUE

7
P2R reference P2R reference 39859
Maker reference Maker reference 854590

854590 - FEU DE PLAQUE

More information

Quantity required : 1

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

8
P2R reference P2R reference 71568
Maker reference Maker reference AP8124718

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

More information

Quantity required : 2

WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158

9
P2R reference P2R reference 71825
Maker reference Maker reference AP8150158

WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158

More information

Quantity required : 8

NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204

10
P2R reference P2R reference 71839
Maker reference Maker reference AP8150204

NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204

More information

Quantity required : 8

AP8121741 - DOUILLE TABLEAU DE BORD

11
P2R reference P2R reference 46933
Maker reference Maker reference AP8121741

AP8121741-BUSH PANEL DE EDGE

More information

Quantity required : 1

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

12
P2R reference P2R reference 71927
Maker reference Maker reference AP8152181

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282

13
P2R reference P2R reference 71945
Maker reference Maker reference AP8152282

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282

More information

Quantity required : 1

AP8220323 - BOUCHON

14
P2R reference P2R reference 72278
Maker reference Maker reference AP8220323

AP8220323 - BOUCHON

More information

Quantity required : 1

852858 - ENTRETOISE

15
P2R reference P2R reference 39638
Maker reference Maker reference 852858

852858 - ENTRETOISE

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108

16
P2R reference P2R reference 71913
Maker reference Maker reference AP8152108

SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108

More information

Quantity required : 2

CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719

17
P2R reference P2R reference 71569
Maker reference Maker reference AP8124719

CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719

More information

Quantity required : 2

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

18
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 2

HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422

19
P2R reference P2R reference 71395
Maker reference Maker reference AP8120422

HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422

More information

Quantity required : 4

890985 - DECALCO EMISSIONS SONORES

20
P2R reference P2R reference 41859
Maker reference Maker reference 890985

890985 - DECALCO EMISSIONS SONORES

More information

Quantity required : 1

890986 - DECALCO

21
P2R reference P2R reference 41860
Maker reference Maker reference 890986

890986 - DECALCO

More information

Quantity required : 1

890984 - EMISSION CONTROL STICKER

22
P2R reference P2R reference 41858
Maker reference Maker reference 890984

890984 - EMISSION CONTROL STICKER

More information

Quantity required : 1
