Vehicle Exploded View - APRILIA SCARABEO 400 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

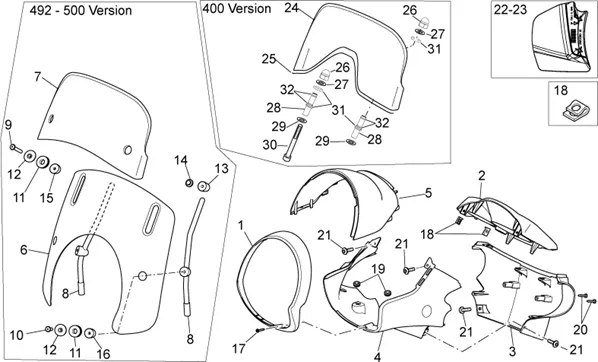

Chassis : 28.08 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/605/Scarabeo_400_Light_2006-2008_28.08.PNG)
1 |
AP8179091 - GHIERA FANALE V. More informationQuantity required : 1 |
||||||
|
2 |
AP8179948-COVERING More informationQuantity required : 1 |
||||||
|
3 |
AP8184044 - HANDLEBARS COVER More informationQuantity required : 1 |
||||||
|
3 |
AP8184544 - SUPPORT ARRIERE BLANC More informationQuantity required : 1 |
||||||
|
3 |
AP8184593-BRACKET More informationQuantity required : 1 |
||||||
|
3 |
AP8268900 - PLANCHE More informationQuantity required : 1 |
||||||
|
3 |
AP8268933 - SUPPORT ROUGE More informationQuantity required : 1 |
||||||
|
3 |
AP8179090 - PLANCIA POSTERIORE More informationQuantity required : 1 |
||||||
|
3 |
AP8179614 - PLANCIA POST.TESTA V.NERO COF. More informationQuantity required : 1 |
||||||
|
3 |
AP8179628 - PLANCIA POST.TESTA V.BEIGE PEA More informationQuantity required : 1 |
||||||
|
3 |
AP8179985-HANDLEBARS COVER BLU More informationQuantity required : 1 |
||||||
|
3 |
AP8184000 - TABL. DE BORD. GREY More informationQuantity required : 1 |
||||||
|
3 |
AP8184015 - HANDLEBARS COVER RED More informationQuantity required : 1 |
||||||
|
3 |
AP8184030-TABL. DE EDGE. BLAC More informationQuantity required : 1 |
||||||
|
4 |
AP8179092 - PLANCIA FANALE More informationQuantity required : 1 |
||||||
|
4 |
AP8179613 - PLANCIA FANALE V.NERO COFFEE More informationQuantity required : 1 |
||||||
|
4 |
AP8179627 - PLANCIA FANALE V.BEIGE PEAR. More informationQuantity required : 1 |
||||||
|
4 |
AP8179984 - HANDLEBARS COVER BLU More informationQuantity required : 1 |
||||||
|
4 |
AP8179999 - TABL. DE BORD. GREY More informationQuantity required : 1 |
||||||
|
4 |
AP8184014-HANDLEBARS COVER RED More informationQuantity required : 1 |
||||||
|
4 |
AP8184029 - TABL. DE BORD. BLANC More informationQuantity required : 1 |
||||||
|
4 |
AP8184045 - HANDLEBARS COVER More informationQuantity required : 1 |
||||||
|
4 |
AP8184543 - SUPPORT PHARE BLANC More informationQuantity required : 1 |
||||||
|
4 |
AP8184592 - SUPPORT More informationQuantity required : 1 |
||||||
|
4 |
AP8268899-BRACKET More informationQuantity required : 1 |
||||||
|
4 |
AP8268932-BRACKET RED More informationQuantity required : 1 |
||||||
|
5 |
AP8134999 - COPERCHIO FANALE More informationQuantity required : 1 |
||||||
|
5 |
AP8184714 - COUVERCLE More informationQuantity required : 1 |
||||||
|
6 |
852378 - CARENAGE More informationQuantity required : 1 |
||||||
|
6 |
858155-VITRE COUPOLE More informationQuantity required : 1 |
||||||
|
7 |
852379 - CARENAGE More informationQuantity required : 1 |
||||||
|
8 |
AP8154086 - SUPPORTI CUPOLINO COMPLETO More informationQuantity required : 1 |
||||||
|
9 |
GU98230640-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/1/img/73481.jpg)
11 |
RUBBER 10X25 OEM PIAGGIO COMMON A LA RANGE-GU32577910 More informationQuantity required : 4 |
||||||
|
12 |
GU03578432-BUSH More informationQuantity required : 4 |
||||||
|
13 |
AP8152498 - OGIVA FIX CUPOLINO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
14 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/7/4/img/57074.jpg)
15 |
BUSH EN T (D6) OEM PIAGGIO COMMON A LA RANGE-AP8221341 More informationQuantity required : 2 |
||||||
|
16 |
AP8152499 - DISTANZIALE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
17 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
18 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
19 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
20 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/9/img/71899.jpg)
21 |
SCREW CRUCIFORME (4X16) INOX OEM PIAGGIO COMMON A LA RANGE-AP8150522 More informationQuantity required : 4 |
||||||
|
22 |
CM223501 - PROT-MAIN GAUCHE More informationQuantity required : 1 |
||||||
|
23 |
CM223502-PROT-MAIN LEFT More informationQuantity required : 1 |
||||||
|
24 |
858158 - COUPOLE More informationQuantity required : 1 |
||||||
|
25 |
860914-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/0/6/img/69806.jpg)
26 |
860651-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
27 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 2 |
||||||
|
28 |
860102 - DOUILLE More informationQuantity required : 2 |
||||||
|
29 |
WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/8/img/71868.jpg)
30 |
SCREW BTR (8X85) OEM PIAGGIO COMMON A LA RANGE-AP8150354 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/2/img/66102.jpg)
31 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-271695 More informationQuantity required : 4 |
||||||
|
32 |
834317-CIRCLIPS More informationQuantity required : 4 |
