Vehicle Exploded View - APRILIA SCARABEO 400 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

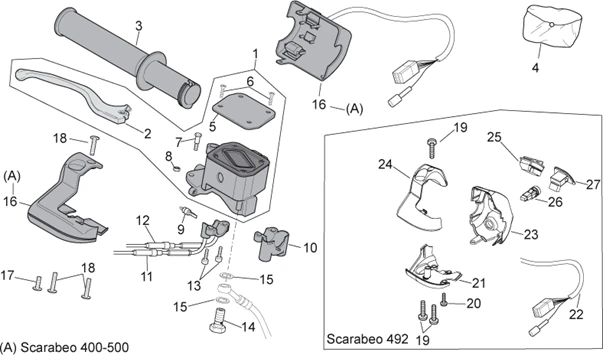

Chassis : 28.18 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/605/Scarabeo_400_Light_2006-2008_28.18.PNG)
1 |
AP8133582-MA? T. CYL. BRAKE FRONT More informationQuantity required : 1 |
||||||
|
1 |
RIGHT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 SCARABEO, ATLANTIC -AP8133734- More informationQuantity required : 1 |
||||||
|
2 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/0/3/img/48803.jpg)
2 |
BRAKE LEVER FRONT OEM PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC, SCARABEO-AP8133811 More informationQuantity required : 1 |
||||||
|
3 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
||||||
|
4 |
AP8113864-KIT REVISION PUMP More informationQuantity required : 1 |
||||||
|
4 |
AP8133812-KIT REVISIONE PUMP More informationQuantity required : 1 |
||||||
|
5 |
Couvercle pompe; |
||||||
|
5 |
AP8133808 - COPERCHIO POMPA More informationQuantity required : 1 |
||||||
|
6 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
|
6 |
AP8133807-SCREW COVER PUMP More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
7 |
AP8125757-SCREW LEVER More informationQuantity required : 1 |
||||||
|
7 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
8 |
AP8213298-NUT More informationQuantity required : 1 |
||||||
|
8 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
9 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
10 |
AP8118582-SIEGE COMM. THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/2/9/img/40129.jpg)
11 |
OPENING GAS THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 400-500 SCARABEO LIGHT 2006>2008 -856575- More informationQuantity required : 1 |
||||||
|
11 |
OPENING GAS THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 400-500 SCARABEO LIGHT 2006>2008 -AP8114491- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/3/0/img/40130.jpg)
12 |
CLOSING GAS THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 400-500 SCARABEO LIGHT 2006>2008 -856576 More informationQuantity required : 1 |
||||||
|
12 |
AP8118704-CABLE GAS CHIUSURA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/0/img/50830.JPG)
13 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150053 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
14 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
15 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
16 |
AP8127572-DEVIOLUCI DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
18 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 3 |
||||||
|
19 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 3 |
||||||
|
20 |
SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269 More informationQuantity required : 1 |
||||||
|
21 |
851809 - COMPLETE REAR COVER More informationQuantity required : 1 |
||||||
|
22 |
642989 - DEVIO DTE+CABL. More informationQuantity required : 1 |
||||||
|
23 |
851807 - SUPPORT More informationQuantity required : 1 |
||||||
|
24 |
851811-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/5/img/67945.jpg)
25 |
SWITCH ARRET ENGINE/COUPE CIRCUIT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-641824 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
26 |
BUTTON DEMARRAGE OEM PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO-58057R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/3/6/img/71636.jpg)
27 |
CAP/OBTURATEUR DE PANEL DE EDGE OEM PIAGGIO COMMON A LA RANGE-AP8127896 More informationQuantity required : 1 |
