Vehicle Exploded View - APRILIA SCARABEO 400 Light 2006-2008 APRILIA

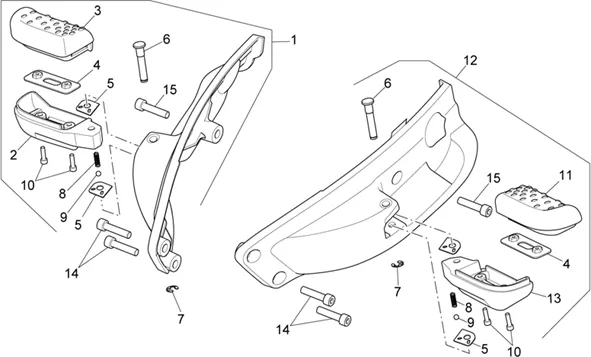

Chassis : 28.03 REPOSE-PIEDS
Repose-Pieds
Search
AP8154035 - SUPPORTO PEDANA DX COMPL.

1
P2R reference P2R reference 51076
Maker reference Maker reference AP8154035

AP8154035 - SUPPORTO PEDANA DX COMPL.

More information

Quantity required : 1

AP8146743 - REP-PIEDS PASS.DTE;

2
P2R reference P2R reference 50099
Maker reference Maker reference AP8146743

AP8146743-REP-FEET PASS. DTE

More information

Quantity required : 1

AP8144514 - CAOUTCHOUC REP-PIEDS PASS.DTE

3
P2R reference P2R reference 49752
Maker reference Maker reference AP8144514

AP8144514-RUBBER REP-FEET PASS. DTE

More information

Quantity required : 1

PLATE REST PIDE PASSENGER OEM MOTO GUZZI AUDACE, CALIFORNIA, ELDORADO-AP8134857

4
P2R reference P2R reference 71712
Maker reference Maker reference AP8134857

PLATE REST PIDE PASSENGER OEM MOTO GUZZI AUDACE, CALIFORNIA, ELDORADO-AP8134857

More information

Quantity required : 2

PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451

5
P2R reference P2R reference 71703
Maker reference Maker reference AP8134451

PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451

More information

Quantity required : 4

AP8121579 - PIVOT REPOSE-PIEDS

6
P2R reference P2R reference 46875
Maker reference Maker reference AP8121579

AP8121579-PIVOT REST-FEET

More information

Quantity required : 2

CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573

7
P2R reference P2R reference 71404
Maker reference Maker reference AP8120573

CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573

More information

Quantity required : 2

SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133

8
P2R reference P2R reference 71437
Maker reference Maker reference AP8121133

SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133

More information

Quantity required : 2

BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861

9
P2R reference P2R reference 71163
Maker reference Maker reference AP8101861

BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861

More information

Quantity required : 2

SCREW BTR (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8150252

10
P2R reference P2R reference 71846
Maker reference Maker reference AP8150252

SCREW BTR (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8150252

More information

Quantity required : 4

AP8144515 - CAOUTCHOUC REP-PIEDS PASS.GCHE

11
P2R reference P2R reference 49753
Maker reference Maker reference AP8144515

AP8144515-RUBBER REP-FEET PASS. GCHE

More information

Quantity required : 1

AP8154036 - SUPPORTO PEDANA SX COMPL.

12
P2R reference P2R reference 51077
Maker reference Maker reference AP8154036

AP8154036-BRACKET PEDANA SX COMPL.

More information

Quantity required : 1

AP8146745 - REP-P. PASS.GCHE;

13
P2R reference P2R reference 50101
Maker reference Maker reference AP8146745

AP8146745-REP-P. PASS. GCHE

More information

Quantity required : 1

SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170

14
P2R reference P2R reference 71830
Maker reference Maker reference AP8150170

SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170

More information

Quantity required : 4

SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236

15
P2R reference P2R reference 71842
Maker reference Maker reference AP8150236

SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236

More information

Quantity required : 2
