Vehicle Exploded View - APRILIA SCARABEO 400 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

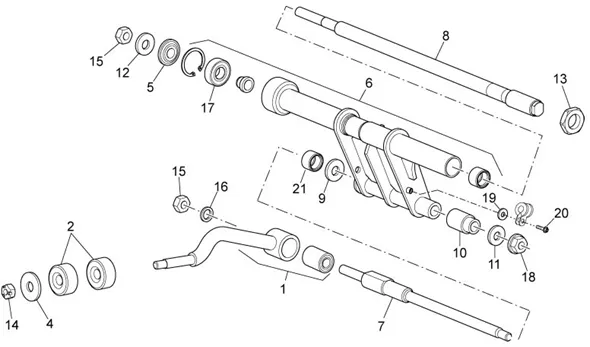

Chassis : 28.02 BIELLETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/605/Scarabeo_400_Light_2006-2008_28.02.PNG)
1 |
668100 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/1/img/65781.jpg)
2 |
BUFFER ARM OCSILLANT OEM PIAGGIO COMMON A TOUTE LA RANGE-178149 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/1/img/65791.JPG)
4 |
WASHER PLATE (10. 3X38X3) OEM PIAGGIO COMMON A LA RANGE-179326 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/2/img/67352.jpg)
5 |
597837 - JOINT More informationQuantity required : 1 |
||||||
|
6 |
666671-OEM MOPED SWINGARM More informationQuantity required : 1 |
||||||
|
7 |
667384-ESSIEU More informationQuantity required : 1 |
||||||
|
8 |
AP8161092 - PERNO BIELLETTA More informationQuantity required : 1 |
||||||
|
9 |
666422-SPACER More informationQuantity required : 1 |
||||||
|
9 |
178902 WASHER More informationQuantity required : 1 |
||||||
|
10 |
666670 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
AP8161156 - DISTANZIALE More informationQuantity required : 1 |
||||||
|
11 |
AP8161144 - RONDELLA D.25X12,5X3,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
12 |
WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/7/img/67067.jpg)
13 |
NUT SPECIAL (22X2 H = 8) OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE-564611 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
15 |
NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-AP8150432 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
16 |
WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/0/img/61040.jpg)
17 |
BEARING FOR BALANCE SHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX, CLASSIC, TUONO 1993>2005 -AP8502624 More informationQuantity required : 1 |
||||||
|
18 |
597869-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
19 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
20 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
|
21 |
667350-SPACER More informationQuantity required : 1 |
