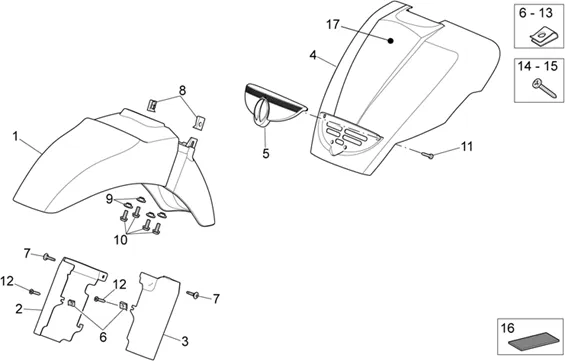

Vehicle Exploded View - APRILIA SCARABEO 400 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.09 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/605/Scarabeo_400_Light_2006-2008_28.09.PNG)
1 |
AP8156200-MUDGUARD ANT. More informationQuantity required : 1 |
||||||
|
1 |
AP8156267 - PARAFANGO ANT.V.NERO COFFEE More informationQuantity required : 1 |
||||||
|
1 |
AP8156268 - PARAFANGO ANT.V.BEIGE PEARLY More informationQuantity required : 1 |
||||||
|
1 |
AP8156298 - FRONT MUDGUARD BLU More informationQuantity required : 1 |
||||||
|
1 |
AP8156299 - GARDE-BOUE GRIS More informationQuantity required : 1 |
||||||
|
1 |
AP8156300-FRONT MUDGUARD RED More informationQuantity required : 1 |
||||||
|
1 |
AP8156301 - GARDE-BOUE BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8156302 - FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
1 |
AP8156346 - GARDE-BOUE AVANT BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8156350 - GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
1 |
AP8226890 - GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
1 |
AP8268937 - GARDE-B AV.NOIR More informationQuantity required : 1 |
||||||
|
2 |
598850-GUIDE More informationQuantity required : 1 |
||||||
|
3 |
598851-GUIDE DE FORK More informationQuantity required : 1 |
||||||
|
4 |
AP8184040 - COVERING WHITE More informationQuantity required : 1 |
||||||
|
4 |
AP8184057 - COVERING BLACK More informationQuantity required : 1 |
||||||
|
4 |
AP8184553 - COFFRE AV., BLANC More informationQuantity required : 1 |
||||||
|
4 |
AP8184602 - COFFRE AV., ARGENT More informationQuantity required : 1 |
||||||
|
4 |
AP8268910 - COFFRE AV., More informationQuantity required : 1 |
||||||
|
4 |
AP8268943 - COFFRE AV., ROUGE More informationQuantity required : 1 |
||||||
|
4 |
AP8179609-COFANO ANT. V. GREY SH. N/DEC More informationQuantity required : 1 |
||||||
|
4 |
AP8179623 - COFANO ANT.V.NERO COF.N/DEC More informationQuantity required : 1 |
||||||
|
4 |
AP8179637 - COFANO ANT.V.BEIGE PEA.N/DEC More informationQuantity required : 1 |
||||||
|
4 |
AP8179995 - COVERING BLU More informationQuantity required : 1 |
||||||
|
4 |
AP8184010 - COVERING GREY More informationQuantity required : 1 |
||||||
|
4 |
AP8184025 - CARENAGE AV ROUGE More informationQuantity required : 1 |
||||||
|
5 |
856578-GRAPHIC More informationQuantity required : 1 |
||||||
|
5 |
AP8179306-FREGIO COFANO ANTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
9 |
WASHER EN T (6) OEM PIAGGIO COMMIN A LA RANGE-AP8121991 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
12 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
13 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 2 |
||||||
|
14 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
15 |
SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426 More informationQuantity required : 2 |
||||||
|
16 |
890517-GASKET DUCT G More informationQuantity required : 1 |
||||||
|
17 |
STICKER/STICKER/GRAPHIC " APRILIA " OEM PIAGGIO 250-300-400-500 SCARABEO-AP8187010 More informationQuantity required : 1 |
