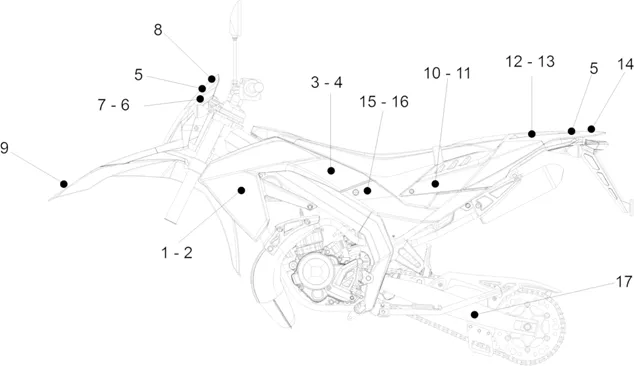

Chassis : 28.25 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/687/RX_50_2014_28.25.PNG)
1 |
2H000366-DECAL More informationQuantity required : 1 |
||||||
|
2 |
2H000367-DECAL More informationQuantity required : 1 |
||||||
|
3 |
2H000368-DECAL More informationQuantity required : 1 |
||||||
|
4 |
2H000369-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/1/2/5/img/38125.jpg)
5 |
DECAL- "WORLD-CHAMPIONSHIPS"ON HEADLIGHTS FAIRING "PIAGGIO GENUINE PART" APRILIA 50 RX, SX 2014> -2H000380 More informationQuantity required : 2 |
||||||
|
6 |
2H000364-DECAL More informationQuantity required : 1 |
||||||
|
7 |
2H000365-DECAL More informationQuantity required : 1 |
||||||
|
8 |
2H000363-DECAL More informationQuantity required : 1 |
||||||
|
9 |
890575-DECAL * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/1/1/9/img/38119.jpg)
10 |
STICKER/STICKER/GRAPHIC FAIRING RIGHT OEM APRILIA 50 RX, SX 2014 > 2016-2H000374 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/1/2/0/img/38120.jpg)
11 |
STICKER/STICKER/GRAPHIC FAIRING LEFT OEM APRILIA 50 RX, SX 2014 > 2016-2H000375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/1/1/7/img/38117.jpg)
12 |
STICKER/STICKER/GRAPHIC REAR RIGHT OEM APRILIA 50 RX, SX 2014 > 2016-2H000372 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/1/1/8/img/38118.jpg)
13 |
STICKER/STICKER/GRAPHIC REAR LEFT OEM APRILIA 50 RX, SX 2014 > 2016-2H000373 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/1/2/1/img/38121.jpg)
14 |
STICKER/STICKER/GRAPHIC DE REAR MUDGUARD OEM PIAGGIO APRILIA 50 SX, RX 2014 > 2016-2H000376 More informationQuantity required : 1 |
||||||
|
15 |
2H000370-DECAL More informationQuantity required : 1 |
||||||
|
16 |
2H000371-DECAL More informationQuantity required : 1 |
||||||
|
17 |
893005 - DECALCO More informationQuantity required : 1 |
