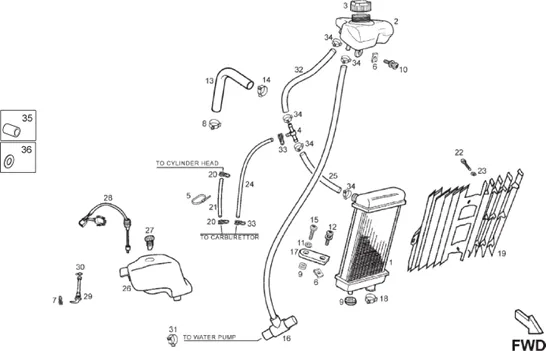

Vehicle Exploded View - APRILIA RX 50 2014

	P2R reference	69933
	Maker reference	2B0024585

RADIATOR 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2018 >/APRILIA RX, SX 2011 >-2B0024586

	P2R reference	64874
	Maker reference	00H03810501

TANK DE REFROIDISEMENT 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2005 >/APRILIA SX, RX 2006 >-00H03810501

	P2R reference	64858
	Maker reference	00H03802472

CAP DE TANK LIQUIDE COOLING OEM DERBI 50 SENDA 2004 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS, SX, RX 2006 >-00H03802472

	P2R reference	69964
	Maker reference	862541

RACORD " Y " DE COOLING ENTRE RADIATOR ET TANK OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2005 >/APRILIA SX, RX 2011 >-862541

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

	P2R reference	71158
	Maker reference	AP8101722

CLAMP CLIC HOSE (25X8, 6) OEM PIAGGIO COMMON A LA RANGE-AP8101722

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	151683
	Maker reference	AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

	P2R reference	63883
	Maker reference	00D01500552

WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

	P2R reference	69857
	Maker reference	86138R

HOSE/HOSE DE COOLING (DU RADIATOR A LA CYLINDER HEAD) OEM PIAGGIO 50 GILERA SMT 2011 > 2017/DERBI SENDA 2006 > 2017/APRILIA SX, RX 2006 >-86138R

	P2R reference	45123
	Maker reference	AP8101927

CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927

	P2R reference	71942
	Maker reference	AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

	P2R reference	151776
	Maker reference	2B004389

HOSE COOLING RADIATOR-PUMP OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2005 >/APRILIA SX, RX 2011 > (MODELE EN " T " WITH DURIT MOULEE)-2B004389

	P2R reference	64024
	Maker reference	00G02200692

BRACKET DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA SX, RX 2006 > 2017-00G02200692

	P2R reference	64852
	Maker reference	00H03801751

CLAMP HOSE (22. 8) OEM PIAGGIO COMMON A LA RANGE-00H03801751

	P2R reference	151094
	Maker reference	2B004936

GRILLE DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-2B005365

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

	P2R reference	64853
	Maker reference	00H03801961

HOSE COOLING DU CYLINDER AU CARBU OEM PIAGGIO GILERA 50 SMT, RCR/DERBI SENDA 2006 >/APRILIA 50 SX, RX, RS-00H03801961

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	71844
	Maker reference	AP8150248

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

	P2R reference	69966
	Maker reference	862543

HOSE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 50 SENDA 2005 >-862543

	P2R reference	69967
	Maker reference	862544

HOSE COOLING ENTRE RADIATOR ET FITTING TROIS VOIES OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2005 >/APRILIA 50 SX, RX-862544

	P2R reference	64826
	Maker reference	00H03704081

TANK D'HUILE OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >, 125 RX, SX 2008 >-00H03704081

	P2R reference	63919
	Maker reference	00F03710241

CAP TANK D'HUILE OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006 >, RS 2006 > 2010-00F03710241

	P2R reference	70338
	Maker reference	867531

JAUGE/SONDE DE NIVEAU OIL OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 2006/APRILIA SX, RX 2006 > 2017-867531

	P2R reference	71216
	Maker reference	AP8104071

FITTING DE TANK OEM PIAGGIO APRILIA 125 SPORT-CITY, MOJITO, 50 SCARABEO, SX, RX, MOJIT, 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-AP8104071

	P2R reference	70716
	Maker reference	879888

CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888

	P2R reference	45123
	Maker reference	AP8101927

CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927

	P2R reference	69965
	Maker reference	862542

HOSE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 50 SENDA 2005 >-862542

	P2R reference	64241
	Maker reference	00H00400501

HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501

	P2R reference	64108
	Maker reference	00G03801701

CLAMP HOSE OEM PIAGGIO COMMON A LA RANGE

	P2R reference	71482
	Maker reference	AP8121697

WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001
