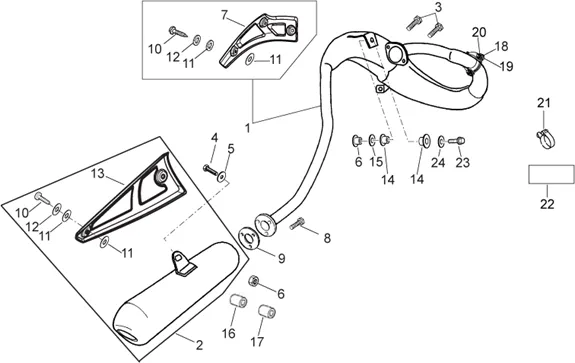

Vehicle Exploded View - APRILIA RX 50 2014

	P2R reference	70326
	Maker reference	867306

SILENCER EXHAUST OEM PIAGGIO APRILIA 50 SX, RX-867306

	P2R reference	70331
	Maker reference	867397

867397-HOSE D'ECHAPPEMENT

	P2R reference	41274
	Maker reference	867480

867480 - SILENCIEUX

	P2R reference	71815
	Maker reference	AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

	P2R reference	71950
	Maker reference	AP8152288

SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288

	P2R reference	71698
	Maker reference	AP8134378

BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378

	P2R reference	139429
	Maker reference	8674035

NUT MOUNTING EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2010 >/APRILIA SX, RX-8674035

	P2R reference	69826
	Maker reference	861020

EXHAUST HEAT PROTECTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -861020

	P2R reference	63895
	Maker reference	00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

	P2R reference	64792
	Maker reference	00H03404321

GASKET SILENCER EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H03404321

	P2R reference	63580
	Maker reference	000000124155

SCREW CRUCIFORME (4X15) OEM PIAGGIO COMMON A LA RANGE-00000012415

	P2R reference	63922
	Maker reference	00F04201361

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	69832
	Maker reference	861049

861049 -

	P2R reference	72276
	Maker reference	AP8220241

RUBBER EXHAUST OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR/APRILIA 50 RS, FUTURA, RX, SX-AP8220241

	P2R reference
	Maker reference	00000031120

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

	P2R reference	63892
	Maker reference	00D04900581

COUSSINET BRONZE EXHAUST OEM PIAGGIO 50 SMT 2011 > 2017/DERBI SENDA 2006 > 2015-00D04900581

	P2R reference	69953
	Maker reference	862429

862429-SPACER

	P2R reference	70102
	Maker reference	865093

GASKET- FROM PIPE TO EXHAUST TO MAIN BODY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2018>/APRILIA 50 RX, SX 2006>, RS 2006> -865093

	P2R reference	71815
	Maker reference	AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	64856
	Maker reference	00H03802461

00H03802461-FLANGE

	P2R reference	64132
	Maker reference	00G05100911

00G05100911-TROUSSE A OUTILS

	P2R reference	71948
	Maker reference	AP8152286

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

	P2R reference	71810
	Maker reference	AP8150018

WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018
