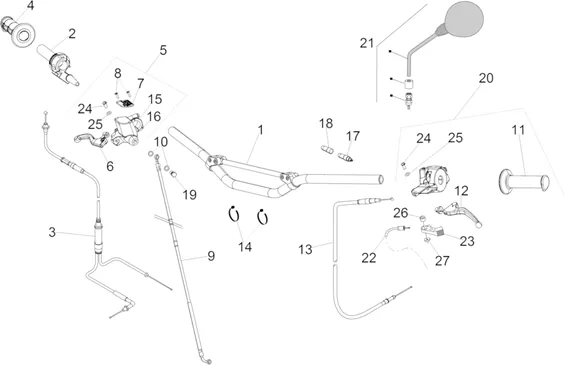

Vehicle Exploded View - APRILIA RX 50 2014

	P2R reference	70294
	Maker reference	8671650001

HANDLEBAR OEM PIAGGIO 50 GILERA SMT RACING 2011 >/DERBI SENDA 2005 > 2013/APRILIA SX, RX 2011 >-8671650001

	P2R reference	64654
	Maker reference	00H02101621

THROTTLE GRIP 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RX, SX 2006 >-00H02101621

	P2R reference	70291
	Maker reference	2B004384

CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-2B004384

	P2R reference	64359
	Maker reference	00H00930091

REVETEMENT DE GRIP RIGHT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930091

	P2R reference	70268
	Maker reference	866959

MAITRE CYLINDER BRAKE FRONT OEM APRILIA 50 RX, SX 2011 >/DERBI 50 SENDA DRD 2010 >-866959

	P2R reference	70299
	Maker reference	867234

LEVER BRAKE 50 A BOX OEM GILERA 50 SMT 2011 >/APRILIA 50 SX, RX 2011 > (WITH SCREW OF REGLAGE) (COURT)-867234

	P2R reference	70300
	Maker reference	867235

COVER MAITRE CYLINDER BRAKE FRONT OEM APRILIA 50 RX, SX 2011 >/DERBI 50 SENDA DRD 2010 >-867235

	P2R reference	66340
	Maker reference	323990

SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-323990

	P2R reference	70334
	Maker reference	867431

867431-TUBE BRAKE

	P2R reference	64330
	Maker reference	00H00900871

SPACER DE CONTACTEUR DE STOP OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2004 >/APRILIA 50 SX, RX-00H00900871

	P2R reference	64358
	Maker reference	00H00930071

REVETEMENT DE GRIP LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930071

	P2R reference	64335
	Maker reference	00H00903291

LEVER D'EMBRAYAGE 50 A BOX OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT 2011 >/APRILIA 50 SX, RX 2006 > 170 MM ALU POLI-00H00903291

	P2R reference	151767
	Maker reference	00H00917301

CABLE/CONTROL/TRANSMISSION CLUTCH OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-2B005231

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	64652
	Maker reference	00H02100901

00H02100901-CLAMP *

	P2R reference	63613
	Maker reference	000020512515

00002051251-SCREW A HEAD CREUSE 5M80X12 N

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	63654
	Maker reference	000050107605

CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760

	P2R reference	70302
	Maker reference	867237

FITTING OF BRAKE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 50 SENDA 2005 >-867237

	P2R reference	70260
	Maker reference	866942

GRIP D'EMBRAYAGE LEFT COMPLETE OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA DRD E-X-TREME 2010 >/APRILIA 50 RX, SX 2011-2B005236

	P2R reference	42149
	Maker reference	894116

LEFT MIRROR OEM PIAGGIO APRILIA 50 RX, SX 2006 >/DERBI SENDA SM LIMITED 2018 >/GILERA 50 SMT DRIFTING 2019 >-894116

	P2R reference	70259
	Maker reference	866941

CABLE/CONTROL/TRANSMISSION DE STARTER OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-866941

	P2R reference	72261
	Maker reference	AP8218115

LEVER DE STARTER OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2010 >/APRILIA SX, RX 2011 >-AP8218115

	P2R reference	72587
	Maker reference	AP8700760

SCREW OF BRAKE LEVER LEFT OEM PIAGGIO 50 SR, MOJITO, RALLY, GULLIVER, RX, SX-AP8700760

	P2R reference	65772
	Maker reference	177072

SPRING LEVER CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2010 >-177072

	P2R reference	72262
	Maker reference	AP8218116

ENCLENCHEMENT CONIQUE CONTROL OF CHOKE OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-AP8218116

	P2R reference	72263
	Maker reference	AP8218117

AGRAFE CONTROL OF CHOKE OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX-AP8218117
