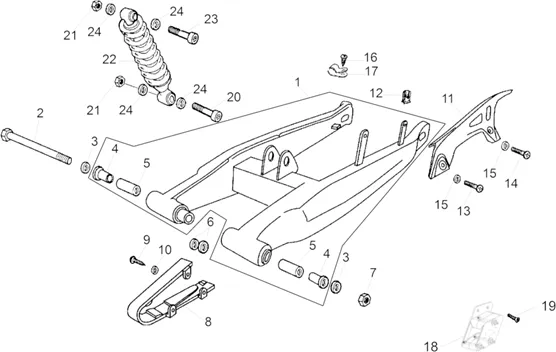

Vehicle Exploded View - APRILIA RX 50 2014

	P2R reference	72850
	Maker reference	2B004345600WGA

ARM DE SUSPENSION REAR OEM PIAGGIO APRILIA 50 SX, RX 2001 > 2016-2B004345600WGA

	P2R reference	64484
	Maker reference	00H013042025

WHEEL SPINDLE OU OEM MOPED SWINGARM (12X240) OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > REAR-00H013042025

	P2R reference	71909
	Maker reference	AP8152018

WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018

	P2R reference	63630
	Maker reference	000025032305

SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017APRILIA 50 SX, RX 2006 > 2017-00002503230

	P2R reference	64217
	Maker reference	00H00301401

SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00301401

	P2R reference	63879
	Maker reference	00D01300192

WASHER PLATE D12 SPINDLE ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00D01300192

	P2R reference	63768
	Maker reference	002621200325

NUT AUTOBLOQUANT/NYLSTOP (M12X1. 50) OEM PIAGGIO COMMON A LA RANGE-00262120032

	P2R reference	64620
	Maker reference	00H01803331

PATIN DE CHAIN 50 A BOX OEM PIAGGIO GILERA SMT 2006 >, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX-RX 2006 >-00H01803331

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	71832
	Maker reference	AP8150177

WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150177

	P2R reference	64557
	Maker reference	00H01508181

COVER CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006-00H01508181

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	71864
	Maker reference	AP8150340

SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340

	P2R reference	71913
	Maker reference	AP8152108

SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108

	P2R reference	71927
	Maker reference	AP8152181

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

	P2R reference	70800
	Maker reference	890721

CLAMP MOUNTING WIRING OU HOSE (D12) OEM PIAGGIO COMMON A LA RANGE-890721

	P2R reference	69853
	Maker reference	86133R

GUIDE CHAIN 50 A BOX OEM 50 GILERA SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >/DERBI 50 SENDA 2006 > (COMPLETE)-86133R

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

	P2R reference	64216
	Maker reference	00H00300912

SCREW TH (12X45) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00300912

	P2R reference	63716
	Maker reference	000231120005

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-00023112000

	P2R reference	70281
	Maker reference	8670020001

REAR SHOCK ABSORBER OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT 2011 >/APRILIA 50 RX/SX 2011 >-8670020001

	P2R reference	64230
	Maker reference	00H00303892

SCREW TH (12X58) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00303892

	P2R reference	71482
	Maker reference	AP8121697

WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976
