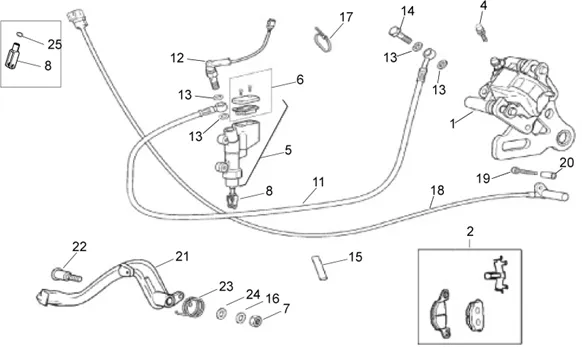

Vehicle Exploded View - APRILIA RX 50 2014

	P2R reference	70265
	Maker reference	866956

BRAKE CALIPER REAR OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2011 >/APRILIA SX, RX 2011 >-866956

	P2R reference	70307
	Maker reference	867242

BRAKE PAD OEM DERBI 50 SENDA 2010 > AV OU AR/GILERA 50 SMT, RCR 2011 > AV OU AR/APRILIA 50 SX-RX 2011 > AR (PAIRE)-867242

	P2R reference	70305
	Maker reference	867240

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX, RX 2011>, 50 SMT, RCR 2011> -867240

	P2R reference	70264
	Maker reference	866955

BRAKE MASTER CYLINDER REAR OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2005 >/APRILIA SX, RX 2011 >-866955

	P2R reference	70306
	Maker reference	867241

COVER MAITRE CYLINDER REAR OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2005 >/APRILIA 50 SX, RX 2011 > 867241

	P2R reference	63715
	Maker reference	000231080005

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

	P2R reference	64404
	Maker reference	00H01103611

ROD OF BRAKE REAR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H01103611

	P2R reference	70267
	Maker reference	866958

HOSE/FLEXIBLE/HOSE OF BRAKE REAR OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2011 >-866958

	P2R reference	64372
	Maker reference	00H01001701

INTERRUPTEUR/CONTACTEUR STOP REAR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H01001701

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	70302
	Maker reference	867237

FITTING OF BRAKE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 50 SENDA 2005 >-867237

	P2R reference	70061
	Maker reference	864587

864587 - PROTECTOR GUIA CABLES MUL125

	P2R reference	63787
	Maker reference	004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	70025
	Maker reference	863307

SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM DERBI 50 SENDA 2011 >/GILERA 50 SMT 2011 >, RCR 2011 >/APRILIA 50 SX 2011 >, RX 2011 >-863307

	P2R reference	63667
	Maker reference	000080635005

SCREW FLANGE BTR M100X3 OEM PIAGGIO COMMON A LA RANGE-00008063500

	P2R reference	70034
	Maker reference	863745

SPACER (6X10X19) OEM PIAGGIO COMMON A LA RANGE-863745

	P2R reference	69950
	Maker reference	86239R

REAR BRAKE PEDAL "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA SX, RX -86239R

	P2R reference	64392
	Maker reference	00H01100172

SCREW PEDAL OF BRAKE REAR OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H01100172

	P2R reference	151763
	Maker reference	00H01102072

SPRING OF RETURN PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT 2006 >, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-2B005020

	P2R reference	151763
	Maker reference	2B005020

SPRING OF RETURN PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT 2006 >, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-2B005020

	P2R reference	63655
	Maker reference	000055275405

SPACER DE PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00005527540

	P2R reference	71387
	Maker reference	AP8120178

O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178
