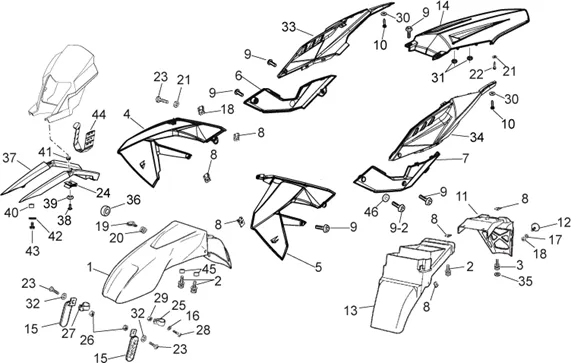

Vehicle Exploded View - APRILIA RX 50 2014

	P2R reference	37671
	Maker reference	2B000015000W0B

FRONT MUDGUARD OEM APRILIA 50 RX, SX 2011 > 2016-2B000015000W0B

	P2R reference	71933
	Maker reference	AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	37668
	Maker reference	2B000013000W0N

2B000013000W0N-BODY PANEL D

	P2R reference	37670
	Maker reference	2B000014000W0N

FAIRING/DEFLECTOR FRONT LEFT OEM PIAGGIO APRILIA 50 SX, RX 2011 > BLACK-2B000014000W0N

	P2R reference	41148
	Maker reference	86108200W0B

COVER/FAIRING RIGHT WHITE SOUS SEAT OEM APRILIA 50 SX, RX 2014 > 2016-86108200W0B

	P2R reference	41150
	Maker reference	86108300W0B

86108300W0B-COVER-STR. SEAT G

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	71933
	Maker reference	AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

	P2R reference	71878
	Maker reference	AP8150420

SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420

	P2R reference	42151
	Maker reference	894118

DOOR-PLATE IMMATRICULATION OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2017-894118

	P2R reference	72325
	Maker reference	AP8224164

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference	37665
	Maker reference	2B000012000W0B

2B000012000W0B-REAR MUDGUARD APRILIA 50 SX, RX WHITE

	P2R reference	64616
	Maker reference	00H01802081

CATADIOPTRE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2017-00H01802081

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	71806
	Maker reference	AP8150013

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013

	P2R reference	71839
	Maker reference	AP8150204

NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	71876
	Maker reference	AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

	P2R reference	63614
	Maker reference	000020520515

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

	P2R reference	71174
	Maker reference	AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	71958
	Maker reference	AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

	P2R reference	71164
	Maker reference	AP8101890

CLAMP BLACK (D8) OEM PIAGGIO COMMON A LA RANGE-AP8101890

	P2R reference	71828
	Maker reference	AP8150165

SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	71825
	Maker reference	AP8150158

WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158

	P2R reference	71888
	Maker reference	AP8150450

WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450

	P2R reference	71833
	Maker reference	AP8150178

WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178

	P2R reference	37661
	Maker reference	2B000010000W0B

REAR FLANK -RIGHT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006 -2B000010000W0B

	P2R reference	37663
	Maker reference	2B000011000W0B

REAR FLANK -LEFT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006 -2B000011000W0B

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	69954
	Maker reference	862449

862449-BUSH

	P2R reference	42153
	Maker reference	89411900XN4

BRACKET DE FRONT MUDGUARD OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2017-89411900XN4

	P2R reference	71957
	Maker reference	AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	71429
	Maker reference	AP8121032

BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032

	P2R reference	71393
	Maker reference	AP8120405

RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	71970
	Maker reference	AP8152329

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

	P2R reference	42155
	Maker reference	894122

894122-COVER

	P2R reference	71429
	Maker reference	AP8121032

BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032

	P2R reference	39014
	Maker reference	840509

840509-SPACER
