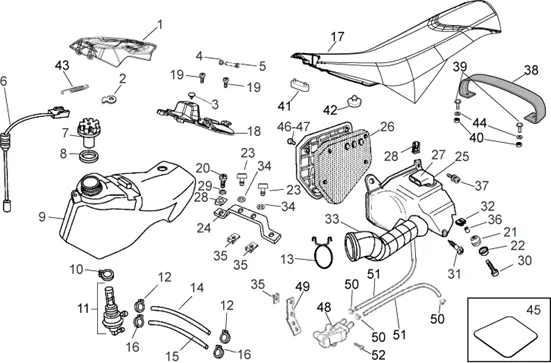

Vehicle Exploded View - APRILIA RX 50 2014

	P2R reference	69836
	Maker reference	861081

HATCH A FUEL OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2016-861081

	P2R reference	64282
	Maker reference	00H00604141

LEVER LATCH HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 > 2017-00H00604141

	P2R reference	71383
	Maker reference	AP8120001

CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001

	P2R reference	63736
	Maker reference	000470304005

CLIPS SHAFT OF HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00047030400

	P2R reference	65043
	Maker reference	00H06303752

SHAFT OF HATCH A FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX-00H06303752

	P2R reference	70056
	Maker reference	864489
	Replaced by référence 72809

FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX (FIL JAUNE/GREEN+FIL RED) -864489

	P2R reference	63934
	Maker reference	00G00401131

CAP TANK D'ESSENCE OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00401131

	P2R reference	63897
	Maker reference	00F00400771

WASHER CAP DE TANK OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00F00400771

	P2R reference	64252
	Maker reference	00H00406011

FUEL TANK OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 >/APRILIA RX, SX 2006 >-00H00406011

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	63930
	Maker reference	00G00400181

ROBINET FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >, RS4 2011 >-00G00400181

	P2R reference	71155
	Maker reference	AP8101595

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

	P2R reference	64080
	Maker reference	00G03204272

CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272

	P2R reference	70868
	Maker reference	896544

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

	P2R reference	70187
	Maker reference	866497

866497-FILTER

	P2R reference	63918
	Maker reference	00F03710131

CLAMP HOSE D7 OEM PIAGGIO COMMON A LA RANGE-00F03710131

	P2R reference	41142
	Maker reference	8610500005

8610500005-SEAT PILOTE

	P2R reference	69856
	Maker reference	861370

861370 - PLAQUE

	P2R reference	71897
	Maker reference	AP8150509

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	71481
	Maker reference	AP8121679

AP8121679-" BUSH EN " " T " " "

	P2R reference	69864
	Maker reference	861417

SCREW MOUNTING DE SEAT OEM DERBI 50 SENDA 2007 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-861417

	P2R reference	64249
	Maker reference	00H00404051

BRACKET MOUNTING FUEL TANK OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00H00404051

	P2R reference	127205
	Maker reference	B043536

HOUSING DE AIR FILTER OEM PIAGGIO APRILIA 50 SX, RX 2014 >-B043536

	P2R reference	151717
	Maker reference	B043766

BASE DE HOUSING AIR OEM DERBI 50 SENDA 2012 >/GILERA 50 SMT 2018 >-B043766

	P2R reference	157088
	Maker reference	B0432990P

ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) OEM DERBI 50 SENDA 2000 </GILERA 50 SMT 2006 >/APRILIA 50 RX 2006 >, SX 2006 >-B0432990P

	P2R reference	64771
	Maker reference	00H03208491

SLEEVE ASPIRATION DE AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX 2006 >-00H03208491

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	151683
	Maker reference	AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

	P2R reference	97091
	Maker reference	AP8152169

AP8152169-SCREW

	P2R reference	71174
	Maker reference	AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

	P2R reference	64767
	Maker reference	00H03207261

SLEEVE AIR FILTER 50 A BOX OEM PIAGGIO GILERA 50 RCR, SMT 2006 >/APRILIA 50 RX, SX 2006 >-00H03207261

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	41160
	Maker reference	8613690004

8613690004-BELT

	P2R reference	66335
	Maker reference	319165

SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165

	P2R reference	71883
	Maker reference	AP8150431

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431

	P2R reference	71589
	Maker reference	AP8126701

AP8126701-RUBBER APPUI SEAT

	P2R reference	71590
	Maker reference	AP8126702

BUTEE RUBBER DE SEAT OEM PIAGGIO COMMON A LA RANGE-AP8126702

	P2R reference	65044
	Maker reference	00H063037625

SPRING HATCH DE TANK OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H063037626

	P2R reference	71809
	Maker reference	AP8150017

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

	P2R reference	71408
	Maker reference	AP8120615

GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615

	P2R reference	63987
	Maker reference	00G01500701

SCREW PARKER (5X38) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00G01500701

	P2R reference	63989
	Maker reference	00G01501701

SCREW AUTOTARAUDEUSE OEM COMMON A LA RANGE PIAGGIO-00G01501701

	P2R reference	70309
	Maker reference	867256

VALVE AIR SECONDAIRE OEM DERBI 50 SENDA 2005 >-867256

	P2R reference	65049
	Maker reference	00H06500561

00H06500561-APPUI DE BO? TE D'AIR

	P2R reference	71153
	Maker reference	AP8101586

CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586

	P2R reference	73380
	Maker reference	CM201309

CM201309-HOSE

	P2R reference	71943
	Maker reference	AP8152280

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280
