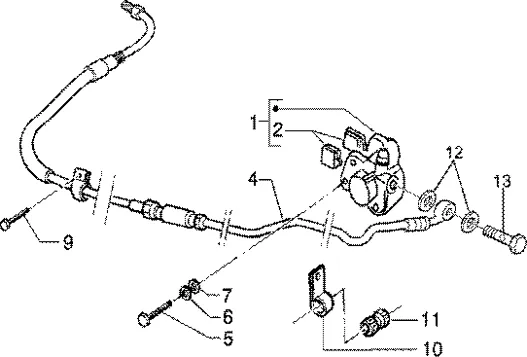

Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005 GILERA

Transmisisons : T44/A ETRIER DU FREIN
Etrier du frein
Search
BRAKE CALIPER REAR OEM PIAGGIO 50 NRG 2000 >/GILERA 50 RUNNER 2000 >-56194R

1
P2R reference P2R reference 79817
Maker reference Maker reference 56194R

BRAKE CALIPER REAR OEM PIAGGIO 50 NRG 2000 >/GILERA 50 RUNNER 2000 >-56194R

More information

Quantity required : 1

BRAKE PAD OEM PIAGGIO 125-250-400 MP3 2006 > AV, 50-125 VESPA LX AV, 50-125 VESPA S AV, 50-125 LIBERTY AV, 50 NRG/GILERA 50 RUNNER AR, 500 FUOCO AR (PAIRE)-666574

2
P2R reference P2R reference 68422
Maker reference Maker reference 666574

BRAKE PAD OEM PIAGGIO 125-250-400 MP3 2006 > AV, 50-125 VESPA LX AV, 50-125 VESPA S AV, 50-125 LIBERTY AV, 50 NRG/GILERA 50 RUNNER AR, 500 FUOCO AR (PAIRE)-666574

More information

Quantity required : 1

BRAKE PAD OEM PIAGGIO 50-125 ZIP AV, 50-125 LIBERTY AV, 50-125 VESPA ET4 AV (HENG-TONG)/GILERA 50 DNA AR, RUNNER AR, NRG AR (HENG-TONG) (PAIRE)-647170

2
P2R reference P2R reference 68010
Maker reference Maker reference 647170

BRAKE PAD OEM PIAGGIO 50-125 ZIP AV, 50-125 LIBERTY AV, 50-125 VESPA ET4 AV (HENG-TONG)/GILERA 50 DNA AR, RUNNER AR, NRG AR (HENG-TONG) (PAIRE)-647170

More information

Quantity required : 1

HOSE/FLEXIBLE/HOSE OF BRAKE REAR OEM PIAGGIO 50 NRG POWER-597752

4
P2R reference P2R reference 82294
Maker reference Maker reference 597752

HOSE/FLEXIBLE/HOSE OF BRAKE REAR OEM PIAGGIO 50 NRG POWER-597752

More information

Quantity required : 1

SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921

5
P2R reference P2R reference 67371
Maker reference Maker reference 598921

SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921

More information

Quantity required : 2

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

6
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 2

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

7
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 2

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

9
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 2

CLAMP OEM PIAGGIO COMMON A LA RANGE-564761

10
P2R reference P2R reference 67078
Maker reference Maker reference 564761

CLAMP OEM PIAGGIO COMMON A LA RANGE-564761

More information

Quantity required : 1

563989-GUIDE CABLE

11
P2R reference P2R reference 67044
Maker reference Maker reference 563989

563989-GUIDE CABLE

More information

Quantity required : 1

827794 - PASSE-CABLE

11
P2R reference P2R reference 68696
Maker reference Maker reference 827794

827794-GUIDE-CABLE

More information

Quantity required : 1

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

12
P2R reference P2R reference 65723
Maker reference Maker reference 127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

More information

Quantity required : 2

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

13
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

More information

Quantity required : 1
