Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

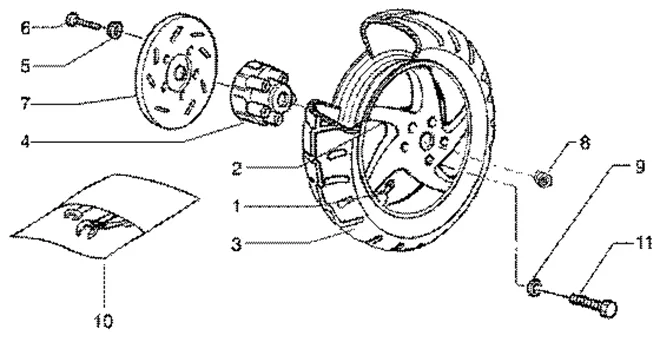

Suspensions-roues : T55 ROUE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/655/Runner_50_SP_1998-2005_T55.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
1 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
2 |
ROUE ARRIERE RUNNER FL NOIR 94 |
||||||
|
2 |
56441100GE - JANTE ROUE More informationQuantity required : 1 |
||||||
|
2 |
JANTE ROUE |
||||||
|
3 |
PNEUMATIQUE 130/70-12" |
||||||
|
3 |
PNEU 130/70-12 56L TL PIRELLI SL60 |
||||||
|
3 |
561784 - PNEU 130/70-12 56L TL MICHELIN BOOPER More informationQuantity required : 1 |
||||||
|
3 |
PNEU 130/70-12 56L TL PIRELLI SL26 |
||||||
|
3 |
Pneu 130/70 12" RUNNER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/2/img/67002.jpg)
4 |
HUB DE REAR WHEEL OEM PIAGGIO 50 NRG/GILERA 50 RUNNER-56111R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
5 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-274369 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/1/img/67041.jpg)
7 |
BRAKE DISC SCOOT OEM PIAGGIO 50 NRG AR, ZIP 2000 > AV/GILERA 50 STALKER AR, RUNNER AR (5 TROUS)-56396R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/1/5/img/67015.jpg)
8 |
CAP DE WHEEL RRIERE OEM PIAGGIO 50 NRG, RUNNER-562129 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
9 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/8/9/img/67789.jpg)
10 |
TROUSSE A OUTILS OEM PIAGGIO 50 LIBERTY, NRG, VESPA LX, 125 PX/GILERA 50 RUNNER-635091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
11 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792 More informationQuantity required : 5 |
