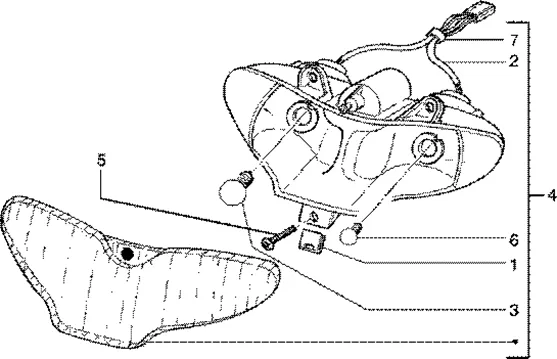

Connexions électriques : T46 GROUPE OPTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/655/Runner_50_SP_1998-2005_T46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
1 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
2 |
GROUPE CABLES PHARE |
||||||
|
2 |
GROUPE CABLES PHARE |
||||||
|
2 |
584052 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/4/img/67184.jpg)
3 |
AMPOULE/LAMPE 12V 35W H8 OEM PIAGGIO COMMON A LA RANGE-580734 More informationQuantity required : 2 |
||||||
|
4 |
GROUPE OPTIQUE |
||||||
|
4 |
580825 - OPTIQUE 99 More informationQuantity required : 1 |
||||||
|
4 |
583907 - OPTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/7/img/65407.jpg)
5 |
SCREW PARKER (3. 5X19) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015994 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
6 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/1/img/65711.jpg)
6 |
AMPOULE/LAMPE 12V 15W P26S/S3 OEM PIAGGIO COMMON A LA RANGE-121539 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
7 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 3 |
||||||
|
8 |
294823 - FAISCEAU DE CABLES More informationQuantity required : 1 |
