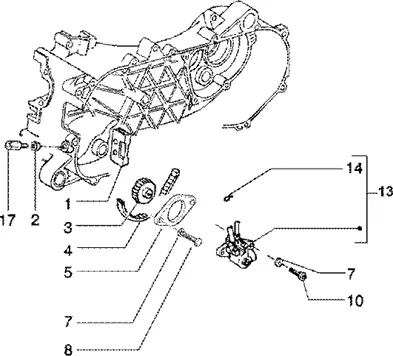

Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005 GILERA

Moteur : T13 POMPE D'HUILE
Pompe d'huile
Search
GUIDE CABLES OEM PIAGGIO COMMON A LA RANGE-287021

1
P2R reference P2R reference 66178
Maker reference Maker reference 287021

GUIDE CABLES OEM PIAGGIO COMMON A LA RANGE-287021

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

2
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

GEAR OF PUMP A OIL OEM PIAGGIO GILERA 50 RUNNER, DNA/PIAGGIO 50 NRG ENGINE H2O-289262

3
P2R reference P2R reference 66217
Maker reference Maker reference 289262

GEAR OF PUMP A OIL OEM PIAGGIO GILERA 50 RUNNER, DNA/PIAGGIO 50 NRG ENGINE H2O-289262

More information

Quantity required : 1

BELT OIL PUMP OEM PIAGGIO 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-286162

4
P2R reference P2R reference 66161
Maker reference Maker reference 286162

BELT OIL PUMP OEM PIAGGIO 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-286162

More information

Quantity required : 1

PLATE BRACKET OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-286163

5
P2R reference P2R reference 66162
Maker reference Maker reference 286163

PLATE BRACKET OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-286163

More information

Quantity required : 1

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

7
P2R reference P2R reference 63840
Maker reference Maker reference 0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

More information

Quantity required : 3

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

8
P2R reference P2R reference 65399
Maker reference Maker reference 0158565

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

More information

Quantity required : 2

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

10
P2R reference P2R reference 65383
Maker reference Maker reference 0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

More information

Quantity required : 1

OIL PUMP OEM PIAGGIO 50 ZIP 1998 > 2005, ZIP SP 1998 > 2013, VESPA ET2 1998 > 2013, NRG MC2 1998 > 2005/GILERA 50 RUNNER 1998 > 2005-82604R

13
P2R reference P2R reference 92719
Maker reference Maker reference 82604R

OIL PUMP OEM PIAGGIO 50 ZIP 1998 > 2005, ZIP SP 1998 > 2013, VESPA ET2 1998 > 2013, NRG MC2 1998 > 2005/GILERA 50 RUNNER 1998 > 2005-82604R

More information

Quantity required : 1

CLAMP (5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-486149

14
P2R reference P2R reference 66705
Maker reference Maker reference 486149

CLAMP (5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-486149

More information

Quantity required : 1

SCREW REGLAGE CABLE OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-146197

17
P2R reference P2R reference 65745
Maker reference Maker reference 146197

SCREW REGLAGE CABLE OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-146197

More information

Quantity required : 1
