Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005 GILERA

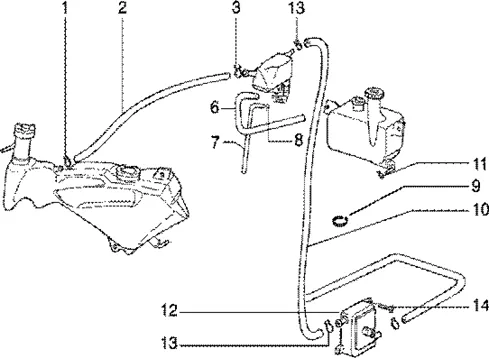

Châssis : T36 CIRCUIT D'ALIMENTATION
Circuit d'alimentation
Search
CM002912 - COLLIER

1
P2R reference P2R reference 72896
Maker reference Maker reference CM002912

CM002912-CLAMP

More information

Quantity required : 1

CM002205 - TUBE DEPRESSIONE

2
P2R reference P2R reference 113415
Maker reference Maker reference CM002205

CM002205 TUBE DEPRESSIONE

More information

Quantity required : 1

CM002912 - COLLIER

3
P2R reference P2R reference 72896
Maker reference Maker reference CM002912

CM002912-CLAMP

More information

Quantity required : 1

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

6
P2R reference P2R reference 65919
Maker reference Maker reference 1R000160

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

More information

Quantity required : 1

TUBE DE DEPRESSION INTAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-1R000158

7
P2R reference P2R reference 109029
Maker reference Maker reference 1R000158

TUBE DE DEPRESSION INTAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-1R000158

More information

Quantity required : 1

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

8
P2R reference P2R reference 72888
Maker reference Maker reference CM002901

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

9
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 1

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

10
P2R reference P2R reference 65919
Maker reference Maker reference 1R000160

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

More information

Quantity required : 1

HOSE CLAMP HOSE (7X10) OEM PIAGGIO COMMON A LA RANGE-CM002903

11
P2R reference P2R reference 72890
Maker reference Maker reference CM002903

HOSE CLAMP HOSE (7X10) OEM PIAGGIO COMMON A LA RANGE-CM002903

More information

Quantity required : 1

82592R-PUMP

12
P2R reference P2R reference 92715
Maker reference Maker reference 82592R

82592R-PUMP

More information

Quantity required : 1

HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904

13
P2R reference P2R reference 72891
Maker reference Maker reference CM002904

HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904

More information

Quantity required : 3

SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

14
P2R reference P2R reference 66043
Maker reference Maker reference 259830
Replaced by référence Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

More information

Quantity required : 2
