Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

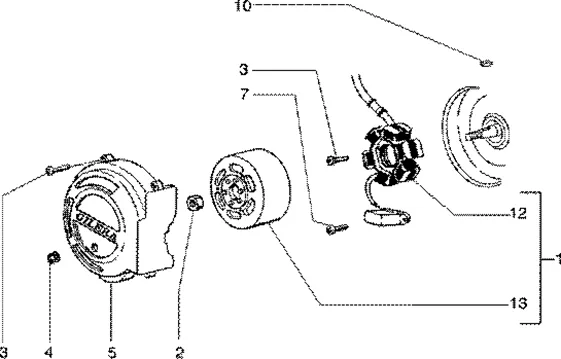

Moteur : T11 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/655/Runner_50_SP_1998-2005_T11.PNG)
1 |
830293-VOLANT MAG EX 293489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/1/4/img/67214.jpg)
1 |
IGNITION OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T, VESPA LX 2T, PRIMAVERA 2T, SPRINT 2T, VESPA-S 2T/APRILIA 50 SR MOTARD 2T, MOJITO, SR H2O/GILERA 50 RUNNER, DNA, STALKER/-58136R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/0/img/66210.jpg)
2 |
NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
3 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/9/img/68689.jpg)
4 |
CAP COVER VOLANT OEM PIAGGIO 50CC COMMON A LA RANGE APRILIA/GILERA-827712 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/0/1/4/img/79014.jpg)
5 |
IGNITION FLYWHEEL COVER "PIAGGIO GENUINE PART" 50 NRG H2O 1998>2004/GILERA 50 RUNNER H2O 1998>2004 -484496 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/5/img/68675.jpg)
5 |
COVER IGNITION OEM PIAGGIO 50 NRG, ZIP SP/GILERA 50 RUNNER, DNA/APRILIA 50 SR H2O-827517 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
7 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
10 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/5/1/img/92851.jpg)
12 |
STATOR OEM PIAGGIO 50 TYPHOON, NRG, NTT, SFERA, LIBERTY, ZIP RST, VESPA ET2 1998 > 2005/GILERA 50 STALKER, RUNNER 1998 > 2005-830294 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/6/1/img/67861.jpg)
12 |
STATOR SCOOT OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-639865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/3/img/67303.jpg)
13 |
ROTOR (KOKUSAN) OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-584526 More informationQuantity required : 1 |
