Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

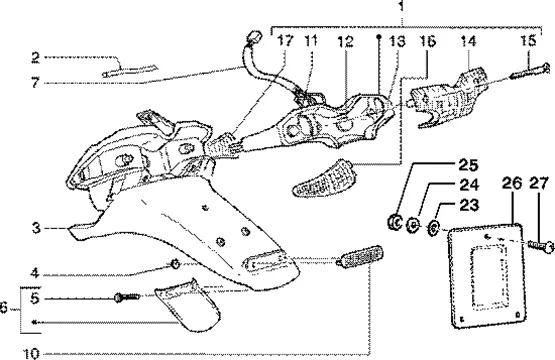

Connexions électriques : T48 FEU AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/655/Runner_50_SP_1998-2005_T48.PNG)
1 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER ANCIEN MODELE -584014- More informationQuantity required : 1 |
||||||
|
2 |
583282-GASKET PROTECT ARR FX More informationQuantity required : 2 |
||||||
|
3 |
298136000P - BAVETTE ARR FX More informationQuantity required : 1 |
||||||
|
3 |
576111000P - GARDE-BOUE ARRIERE M24/REPLICA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
4 |
PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
5 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
|
6 |
573925000P - PROTECTION More informationQuantity required : 1 |
||||||
|
6 |
576171000P - PARASPRUZZI POST.COMPL More informationQuantity required : 1 |
||||||
|
7 |
293565 - GR CABLES More informationQuantity required : 1 |
||||||
|
8 |
SUPPORT PLAQUE IMMATRICULATION C27 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
8 |
DOOR PLATE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584884 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
10 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
11 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
12 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
|
13 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/0/9/img/82009.jpg)
14 |
LENS FOR TAIL LAMP "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -584030- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/5/img/66245.jpg)
15 |
SCREW OF LAMP AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-290944 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/6/7/img/82067.jpg)
15 |
584458 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/0/2/img/82002.jpg)
16 |
CABOCHON DE REAR LEFT INDICATOR OEM PIAGGIO GILERA 50 RUNNER 1998 > 2004-584020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/0/3/img/82003.jpg)
17 |
CABOCHON DE REAR RIGHT INDICATOR OEM PIAGGIO GILERA 50 RUNNER 1998 > 2004-584021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/4/img/66264.jpg)
18 |
CAP COVER OEM PIAGGIO COMMON A LA RANGE-293717 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
19 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
||||||
|
20 |
013754-WASHER S01375400 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
21 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
22 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
23 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 3 |
||||||
|
24 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 3 |
||||||
|
25 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/8/img/67968.jpg)
26 |
BRACKET DE PLATE IMMATRICCULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-642235 More informationQuantity required : 1 |
||||||
|
27 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
