Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

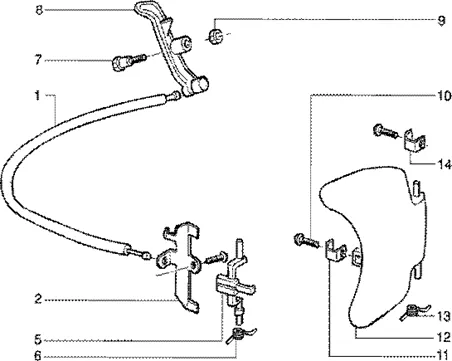

Châssis : T31 PORTILLON ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/655/Runner_50_SP_1998-2005_T31.PNG)
1 |
CM012801 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/8/5/img/78085.jpg)
2 |
BRACKET PORTILLON FUEL OEM PIAGGIO 50-125 RUNNER GILERA 2005 <-299903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/2/img/78072.jpg)
5 |
CLIQUET PORTILLON FUEL OEM PIAGGIO 50-125 RUNNER-299687 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/8/8/img/80188.jpg)
6 |
573090 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
7 |
SCREW SPECIALE DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-299972 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/8/4/img/78084.jpg)
8 |
CLIQUET DE LOCK OEM PIAGGIO 50 NRG-299902 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
10 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/1/1/img/72011.jpg)
11 |
BRACKET DE HATCH A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-AP8161182 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/4/7/img/80347.jpg)
12 |
574263000P - TRAPPE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/5/0/img/80350.jpg)
13 |
574267 - RESSORT DE TRAPPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/6/3/img/80263.jpg)
14 |
573716 - SUPPORT More informationQuantity required : 1 |
