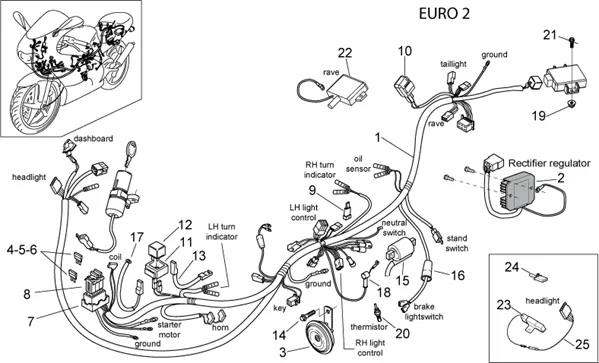

Chassis : 28.34 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.34.png)
1 |
AP8127745 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/4/img/45894.jpg)
2 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" APRILIA 125 RS, SX, RX, MX, CLASSIC, 650 PEGASO, 125 LEONARDO ROTAX, 125 SCARABEO ROTAX -AP8112906- More informationQuantity required : 1 |
||||||
|
3 |
AP8127391 - KLAXON; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
4 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
5 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 1 |
||||||
|
6 |
495357 - FUSIBLE More informationQuantity required : 1 |
||||||
|
7 |
AP8112942 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
|
8 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
9 |
DIODE DE SECURITE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC-AP8212588 More informationQuantity required : 1 |
||||||
|
10 |
AP8127847 - INTERMITTENZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
11 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
12 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
|
13 |
AP8124119 - CABLAGE RELAIS-DEMARR.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
14 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/6/3/img/45863.jpg)
15 |
ENGINE DE CONTROL VALVE EXHAUST OEM PIAGGIO APRILIA 125 RS, RX, SX, PEGASO, CLASSIC-AP8112567 More informationQuantity required : 1 |
||||||
|
16 |
AP8120816 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
17 |
AP8112460 - CABLAGE RELAIS-MOT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/4/4/img/46344.jpg)
18 |
CAPUCHON BORNE OEM APRILIA 125 RS 1999 > 2010-AP8118516 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
19 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/5/0/1/img/47501.jpg)
20 |
SONDE DECLANCHEMENT VENTILATEUR OEM PIAGGIO APRILIA 125 RS 1995 > 2010, TUONO 2003 > 2004-AP8124487 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
21 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/6/4/img/45864.jpg)
22 |
POWER VALVE CONTROL UNIT "PIAGGIO GENUINE PART" APRILIA 125 RS, AF1, TUONO, RX, SX -AP8112568- More informationQuantity required : 1 |
||||||
|
23 |
AP8224170-RESISTANCE WITH WIRING More informationQuantity required : 1 |
||||||
|
24 |
AP8124943-PONTE PER CAVALLETTO SIDE More informationQuantity required : 1 |
||||||
|
25 |
851757-GROUP CABLES More informationQuantity required : 1 |
