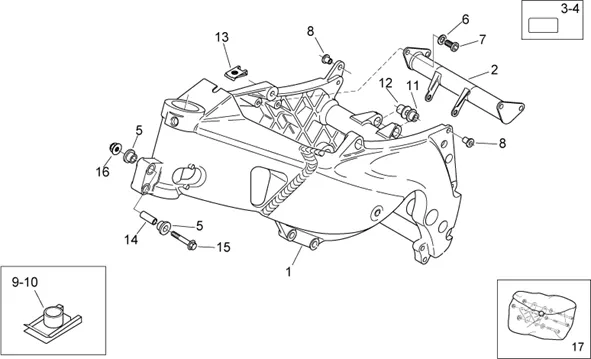

Vehicle Exploded View - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA) APRILIA

Chassis : 28.01 CHASSIS
Chassis
Search
AP8145067 - CADRE POLI ET LAVE

1
P2R reference P2R reference 49917
Maker reference Maker reference AP8145067

AP8145067 - CADRE POLI ET LAVE

More information

Quantity required : 1

AP8135718 - PLAQ.T?TE CADRE CAT;

2
P2R reference P2R reference 49155
Maker reference Maker reference AP8135718

AP8135718 - PLAQ.T?TE CADRE CAT;

More information

Quantity required : 1

AP8157086 - DECALCO TELAIO DX

3
P2R reference P2R reference 51393
Maker reference Maker reference AP8157086

AP8157086-DECAL TELAIO DX

More information

Quantity required : 1

AP8157087 - DECALCO TELAIO SX

4
P2R reference P2R reference 51394
Maker reference Maker reference AP8157087

AP8157087-DECAL TELAIO SX

More information

Quantity required : 1

RUBBER FRAME OEM APRILIA 125 RS 2T 1995 > 2010-AP8120670

5
P2R reference P2R reference 46624
Maker reference Maker reference AP8120670

RUBBER FRAME OEM APRILIA 125 RS 2T 1995 > 2010-AP8120670

More information

Quantity required : 4

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

6
P2R reference P2R reference 71809
Maker reference Maker reference AP8150017

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

More information

Quantity required : 4

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

7
P2R reference P2R reference 71829
Maker reference Maker reference AP8150169

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

More information

Quantity required : 4

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

8
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 4

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

9
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 9

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

10
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 4

AP8121151 - "DOUILLE EN ""T"""

11
P2R reference P2R reference 46731
Maker reference Maker reference AP8121151

AP8121151-" BUSH EN " " T " " "

More information

Quantity required : 1

BUSH EN T (D10) OEM PIAGGIO COMMON A LA RANGE-AP8121155

12
P2R reference P2R reference 71439
Maker reference Maker reference AP8121155

BUSH EN T (D10) OEM PIAGGIO COMMON A LA RANGE-AP8121155

More information

Quantity required : 1

AP8102798 - CLIP LARGE

13
P2R reference P2R reference 45226
Maker reference Maker reference AP8102798

AP8102798 - CLIP LARGE

More information

Quantity required : 1

AP8121764 - ENTRETOISE

14
P2R reference P2R reference 46934
Maker reference Maker reference AP8121764

AP8121764 - ENTRETOISE

More information

Quantity required : 2

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8152284

15
P2R reference P2R reference 71946
Maker reference Maker reference AP8152284

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8152284

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

16
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 2

866346 - PLAQUE

17
P2R reference P2R reference 70177
Maker reference Maker reference 866346

866346-PLATE

More information

Quantity required : 1
