Vehicle Exploded View - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

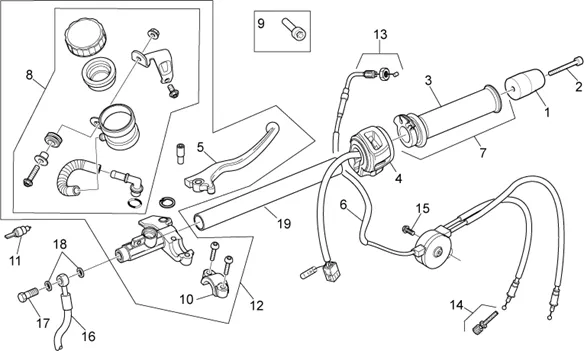

Chassis : 28.16 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.16.png)
1 |
AP8161057-PESO ANTIVIBRANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/9/img/71859.jpg)
2 |
SCREW BTR (6X50) HANDLEBAR END OEM PIAGGIO COMMON A LA GAME MOTO APRILIA-AP8150324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.jpg)
3 |
POIGNEES RUBBER (PAIRE) OEM APRILIA 50-125 RS 2010 <-AP8118287 More informationQuantity required : 1 |
||||||
|
4 |
AP81249146-DEVIO DTE + CABL * More informationQuantity required : 1 |
||||||
|
5 |
AP8118730-LEVA BRAKE ANT NUDA * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/0/8/img/46108.jpg)
6 |
AP8114320 - CABLE GAZ AVEC DEDOUBLEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/9/img/46299.jpg)
7 |
THROTTLE GRIP OEM PIAGGIO APRILIA 50 RS 1999 > 2005, 125 RS 1995 > 2010, AF1-AP8118307 More informationQuantity required : 1 |
||||||
|
8 |
AP8104997 - SERBATOIO OLIO CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 1 |
||||||
|
10 |
AP8118728-CAVALLOTTO LEVA FRIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
11 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/2/1/img/48821.jpg)
12 |
MAITRE CYLINDER BRAKE FRONT OEM PIAGGIO 125 RS 2006 > 2010-AP8133838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/1/2/img/46112.jpg)
13 |
NUT DE REGLAGE CABLE ACCELERATEUR OEM APRILIA 125 RS 1999 > 2010-AP8114332 More informationQuantity required : 1 |
||||||
|
14 |
AP8114272 - REGLAGE CABLE ACCELERAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
15 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
|
16 |
AP8133885 - TUBO FRENO ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
17 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
18 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/4/0/5/img/46405.jpg)
19 |
HALF-HANDLEBAR OEM PIAGGIO APRILIA 125 RS 2006 > 2010-AP8118729 More informationQuantity required : 1 |
