Vehicle Exploded View - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

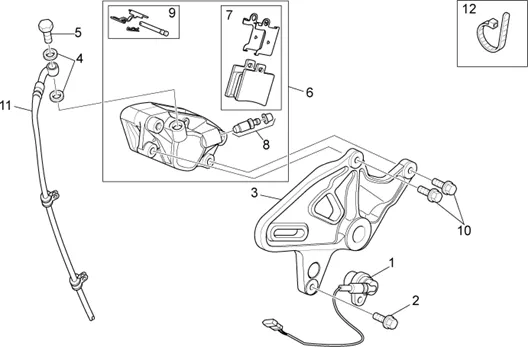

Chassis : 28.32 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.32.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/1/3/img/70813.jpg)
1 |
SENSOR OF INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA/APRILIA 125-250-300 SPORT-CITY, 250-300-400 SCARABEO, 125 RS-893570 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
2 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
3 |
AP8154015 - PIASTRA ANCORAGGIO PINZA POST. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 3 |
||||||
|
6 |
AP8133845 - PINZA FRENO POST.ORO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/3/img/71693.jpg)
7 |
BRAKE PADS REAR OEM PIAGGIO APRILIA 125-400-500 SCARABEO LIGHT, 125-250 SPORT-CITY 2006 > 2008, 300 SPORT CITY LIGHT 2008 > 2012, 125 RS 2006 > 2010 (PAIRE)-AP8133946 More informationQuantity required : 1 |
||||||
|
8 |
AP8133948 - KIT SPURGO POST. More informationQuantity required : 1 |
||||||
|
9 |
AP8133947 - PERNO E MOLLA PINZA POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
10 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
|
11 |
AP8133884-TUBO BRAKE POST. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
12 |
HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422 More informationQuantity required : 2 |
