Vehicle Exploded View - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

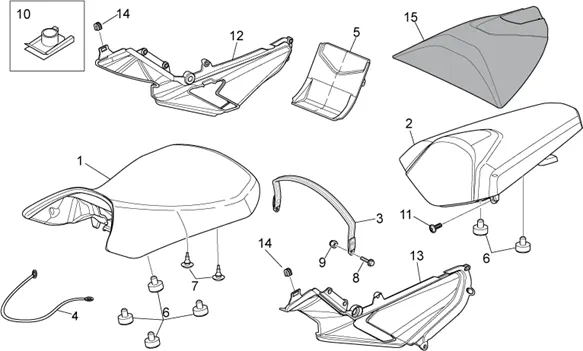

Chassis : 28.12 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.12.png)
1 |
AP8129456 - SELLE ROUGE More informationQuantity required : 1 |
||||||
|
1 |
AP8129522 - SELLE NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8129493 - SELLENOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8129524 - SELLE PASSAGER NOIRE More informationQuantity required : 1 |
||||||
|
2 |
AP8129523 - SELLE ROUGE More informationQuantity required : 1 |
||||||
|
2 |
AP8129494 - SELLE ROUGE More informationQuantity required : 1 |
||||||
|
2 |
AP8129457 - SELLA PASSEGGERO More informationQuantity required : 1 |
||||||
|
3 |
AP8129458-CINGHIA PASSEGGERO More informationQuantity required : 1 |
||||||
|
3 |
AP8129495 - POIGNEE ROUGE More informationQuantity required : 1 |
||||||
|
4 |
AP8102502-CABLE ACCROCHAGE CASQUE More informationQuantity required : 1 |
||||||
|
5 |
AP8179201 - SPORTELLO PORTAOGGETTI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
6 |
BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
7 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
11 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
|
12 |
AP8179186-CHIUSURA REGGISELLA DX More informationQuantity required : 1 |
||||||
|
13 |
AP8179288-CHIUSURA REGGISELLA SX More informationQuantity required : 1 |
||||||
|
14 |
RUBBER EN U OEM PIAGGIO COMMON A LA RANGE-AP8120937 More informationQuantity required : 2 |
||||||
|
15 |
851762 - BOUCHON More informationQuantity required : 1 |
