Vehicle Exploded View - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

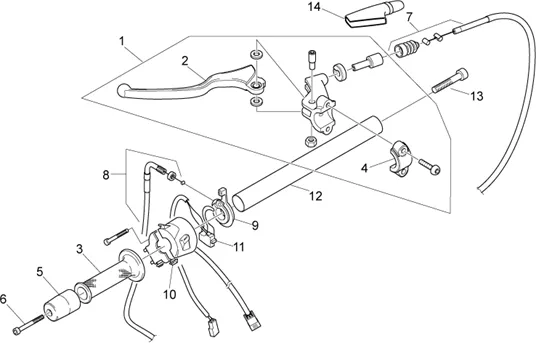

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.17.png)
1 |
AP8118716-PORTALEVA FRIZIONE CPL * More informationQuantity required : 1 |
||||||
|
2 |
AP8118727 - LEVA FRIZIONE NUDA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.jpg)
3 |
POIGNEES RUBBER (PAIRE) OEM APRILIA 50-125 RS 2010 <-AP8118287 More informationQuantity required : 1 |
||||||
|
4 |
AP8118728-CAVALLOTTO LEVA FRIZIONE More informationQuantity required : 1 |
||||||
|
5 |
AP8161057-PESO ANTIVIBRANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/9/img/71859.jpg)
6 |
SCREW BTR (6X50) HANDLEBAR END OEM PIAGGIO COMMON A LA GAME MOTO APRILIA-AP8150324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/9/0/img/46190.jpg)
7 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO APRILIA 125 RS 1995 > 2010, TUONO 2003 > 2004-AP8114467 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/1/1/img/46111.jpg)
8 |
CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 125 RS 1996>2010 -AP8114331- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/0/0/img/46300.jpg)
9 |
LEVER DE STARTER OEM PIAGGIO APRILIA 125 RS, TUONO, AF1, CLASSIC, 650 PEGASO-AP8118308 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/0/img/71570.jpg)
10 |
COMMODO/SWITCH LEFT OEM APRILIA 125 RS 1999 < 2005/650 PEGASO 2001 < 2004-AP8124915 More informationQuantity required : 1 |
||||||
|
11 |
AP8124152-POUSSOIR CRONO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/4/0/5/img/46405.jpg)
12 |
HALF-HANDLEBAR OEM PIAGGIO APRILIA 125 RS 2006 > 2010-AP8118729 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
13 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/4/img/46594.jpg)
14 |
AP8120271 - CACHE-REGLAGE EMBRAYAGE More informationQuantity required : 1 |
