Vehicle Exploded View - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

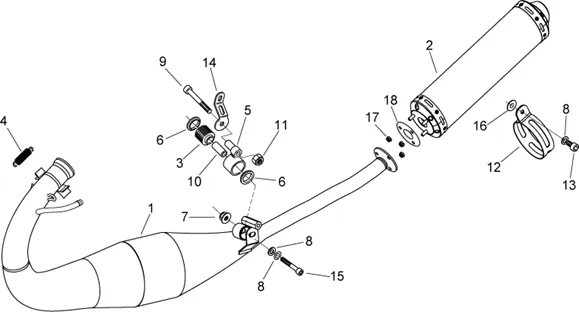

Chassis : 28.27 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.27.png)
1 |
AP8119889 - MARMITTA CAT. More informationQuantity required : 1 |
||||||
|
1 |
890921 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
AP8119833 - MARMITTA More informationQuantity required : 1 |
||||||
|
1 |
AP8119751 - POT ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
852145 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
1 |
858201 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
858207 - POT D'ECHAPPEMENT 80KM/H More informationQuantity required : 1 |
||||||
|
1 |
AP8119880 - MARMITTA CAT. More informationQuantity required : 1 |
||||||
|
2 |
AP8119745 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
2 |
853034 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
2 |
AP8119869 - SILENZIATORE More informationQuantity required : 1 |
||||||
|
3 |
AP8101285 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/4/img/46724.jpg)
4 |
EXHAUST SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, PEGASO, AF1 -AP8121091 More informationQuantity required : 2 |
||||||
|
5 |
AP8146608-BRACKET CENTRAL SILENCER More informationQuantity required : 1 |
||||||
|
5 |
AP8135289-BRACKET CENTRAL SILENCER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/3/8/6/img/45386.jpg)
6 |
AP8104474 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
8 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/7/img/71867.jpg)
9 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8150351 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
10 |
AP8121058 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/8/1/img/46581.jpg)
12 |
SILENCER CLIP "PIAGGIO GENUINE PART" PIAGGIO APRILIA 125 RS, RX, SX 2006>2010 -AP8119881 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/6/9/img/45169.jpg)
12 |
CLAMP DE SILENCER EXHAUST PIAGGIO APRILIA 50-125 RS 1999 > 2005-AP8102432 More informationQuantity required : 1 |
||||||
|
13 |
AP8152112-SCREW More informationQuantity required : 1 |
||||||
|
14 |
AP8154016-PIASTRINA FISSAGGIO CARENA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
15 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
16 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/5/8/img/46658.jpg)
18 |
GASKET SILENCER OEM PIAGGIO 125 RS APRILIA 2010 <-AP8120812 More informationQuantity required : 1 |
