Vehicle Exploded View - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

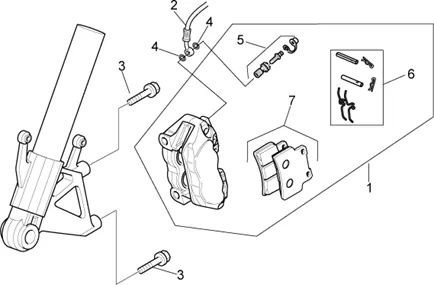

Chassis : 28.29 PINCE FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.29.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/5/1/1/img/149511.jpg)
1 |
ETIRIER BRAKE FRONT OEM PIAGGIO 125 RS 2006 > 2010, DORSODURO-SHIVER FRONT RIGHT-AP8133841 More informationQuantity required : 1 |
||||||
2 |
AP8133885 - TUBO FRENO ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
3 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152414 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
5 |
AP8133945-KIT SPURGO ANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/6/6/img/48866.jpg)
6 |
KIT DE REPARATION STUD + SPRING PLATE FRONT OEM APRILIA 750-900 DORSODURO, SHIVER-AP8133944 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/1/img/71691.jpg)
7 |
BRAKE PAD OEM PIAGGIO APRILIA 750-900 DORSODURO 2008 > AV, 1200 CAPONORD 2014 > AV, 750-900 SHIVER 2007 > AV, 850 MANA 2007 > AV, 125 RS 2006 > 2010 AV (ORGANIQUE)-AP8133943 More informationQuantity required : 1 |
