Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 1000 Porter D120 E5 2010-2015 PIAGGIO VU

Suspensions - roues : 04.05 SUSPENSION ARRIÈRE - AMORTISSEUR/S

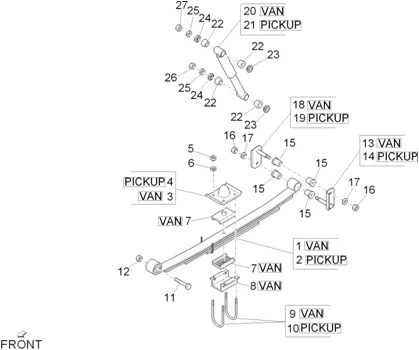

Suspension arrière - Amortisseur/s
Search
B005010 - RESSORT

1
P2R reference P2R reference 122109
Maker reference Maker reference B005010

B005010 SPRING

More information

Quantity required : 2

B007445 - RESSORT

2
P2R reference P2R reference 122019
Maker reference Maker reference B007445

B007445 SPRING

More information

Quantity required : 2

4834187Z03000 - TAMPON

3
P2R reference P2R reference 118399
Maker reference Maker reference 4834187Z03000

4834187Z03000 BUFFER

More information

Quantity required : 2

4834187Z02000 - TAMPON RESSORT ARRIER

4
P2R reference P2R reference 117246
Maker reference Maker reference 4834187Z02000

4834187Z02000 BUFFER SPRING ARRIER

More information

Quantity required : 2

NUT M10X1. 25 OEM PIAGGIO COMMON A LA RANGE-1E003636

5
P2R reference P2R reference 110197
Maker reference Maker reference D9411071000

NUT M10X1. 25 OEM PIAGGIO COMMON A LA RANGE-1E003636

More information

Quantity required : 8

RONELLE SHAFT DE TRANSMISSION OEM PIAGGIO PORTER 2020 <-9451201000000

6
P2R reference P2R reference 110471
Maker reference Maker reference 9451201000000

RONELLE SHAFT DE TRANSMISSION OEM PIAGGIO PORTER 2020 <-9451201000000

More information

Quantity required : 8

4837287Z01000 - PANNEAU

7
P2R reference P2R reference 111995
Maker reference Maker reference 4837287Z01000

4837287Z01000 PANEL

More information

Quantity required : 4

4837187Z02000 - ARRET

8
P2R reference P2R reference 113702
Maker reference Maker reference 4837187Z02000

4837187Z02000 ARRET

More information

Quantity required : 2

D9004117087T - BOULON

9
P2R reference P2R reference 115224
Maker reference Maker reference D9004117087T

D9004117087T BOLT

More information

Quantity required : 4

B023019 - VIS

10
P2R reference P2R reference 113700
Maker reference Maker reference B023019

B023019 SCREW

More information

Quantity required : 4

SCREW TH (12X90) OEM PIAGGIO COMMON A LA RANGE-B007665

11
P2R reference P2R reference 112574
Maker reference Maker reference B007665

SCREW TH (12X90) OEM PIAGGIO COMMON A LA RANGE-B007665

More information

Quantity required : 2

NUT FLANGE (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-261319

12
P2R reference P2R reference 66047
Maker reference Maker reference 261319

NUT FLANGE (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-261319

More information

Quantity required : 2

4840887Z01000 - SUPPORT ART.

13
P2R reference P2R reference 115536
Maker reference Maker reference 4840887Z01000

4840887Z01000 BRACKET ART.

More information

Quantity required : 2

D4840887Z03 - PLAQUE

14
P2R reference P2R reference 115982
Maker reference Maker reference D4840887Z03

D4840887Z03 PLATE

More information

Quantity required : 2

RUBBER MOUNT DE LAME SUSPENSION REAR OEM PIAGGIO PORTER 2020 <-261219

15
P2R reference P2R reference 112910
Maker reference Maker reference 261219

RUBBER MOUNT DE LAME SUSPENSION REAR OEM PIAGGIO PORTER 2020 <-261219

More information

Quantity required : 8

D9411051000 - ECROU

16
P2R reference P2R reference 110109
Maker reference Maker reference D9411051000

D9411051000 NUT

More information

Quantity required : 4

9451101000000 - RONDELLE

17
P2R reference P2R reference 109803
Maker reference Maker reference 9451101000000

9451101000000 - RONDELLE

More information

Quantity required : 4

4804187Z01000 - SUPPORT ART.

18
P2R reference P2R reference 115729
Maker reference Maker reference 4804187Z01000

4804187Z01000 BRACKET ART.

More information

Quantity required : 2

D4804187Z02 - PLAQUE

19
P2R reference P2R reference 116119
Maker reference Maker reference D4804187Z02

D4804187Z02 PLATE

More information

Quantity required : 2

REAR SHOCK ABSORBER OEM PIAGGIO PORTER VAN 2020 <-56599R

20
P2R reference P2R reference 120919
Maker reference Maker reference 56599R

REAR SHOCK ABSORBER OEM PIAGGIO PORTER VAN 2020 <-56599R

More information

Quantity required : 2

REAR SHOCK ABSORBER OEM PIAGGIO PORTER 1998 > 2020-1E002834

21
P2R reference P2R reference 207663
Maker reference Maker reference 1E002834

REAR SHOCK ABSORBER OEM PIAGGIO PORTER 1998 > 2020-1E002834

More information

Quantity required : 2

REAR SHOCK ABSORBER OEM PIAGGIO PORTER 1998 > 2020-1E002834

21
P2R reference P2R reference 207663
Maker reference Maker reference 56594R

REAR SHOCK ABSORBER OEM PIAGGIO PORTER 1998 > 2020-1E002834

More information

Quantity required : 2

RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-B004981

22
P2R reference P2R reference 113584
Maker reference Maker reference B004981

RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-B004981

More information

Quantity required : 8

WASHER PLATE REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004209144

23
P2R reference P2R reference 110703
Maker reference Maker reference D9004209144

WASHER PLATE REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004209144

More information

Quantity required : 4

WASHER REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004209143

24
P2R reference P2R reference 110331
Maker reference Maker reference D9004209143

WASHER REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004209143

More information

Quantity required : 4

WASHER GROWER D12 OEM PIAGGIO COMMON A LA RANGE-D9451101200

25
P2R reference P2R reference 110228
Maker reference Maker reference D9451101200

WASHER GROWER D12 OEM PIAGGIO COMMON A LA RANGE-D9451101200

More information

Quantity required : 4

NUT REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004170152

26
P2R reference P2R reference 111409
Maker reference Maker reference D9004170152

NUT REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004170152

More information

Quantity required : 2

NUT 12X1. 25 OEM PIAGGIO COMMON A LA RANGE-D9411541200

27
P2R reference P2R reference 110302
Maker reference Maker reference D9411541200

NUT 12X1. 25 OEM PIAGGIO COMMON A LA RANGE-D9411541200

More information

Quantity required : 2
