Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 1000 Porter D120 E5 2010-2015 PIAGGIO VU

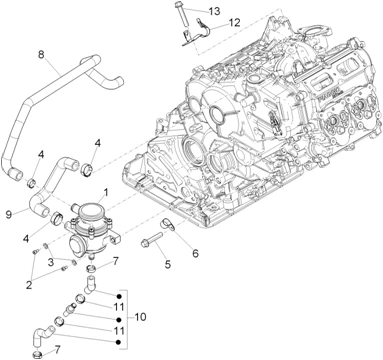

Moteur : 01.44 SYSTÈME BLOW-BY
Système blow-by
Search
B011055 - SEPARATEUR D'HUILES

1
P2R reference P2R reference 122147
Maker reference Maker reference B011055

B011055 - SEPARATEUR D'HUILES

More information

Quantity required : 1

436669 - VIS

2
P2R reference P2R reference 66499
Maker reference Maker reference 436669

436669-SCREW

More information

Quantity required : 2

WASHER PLATE (14. 1X18. 2X1) OEM PIAGGIO COMMON A LA RANGE-847183

3
P2R reference P2R reference 69481
Maker reference Maker reference 847183

WASHER PLATE (14. 1X18. 2X1) OEM PIAGGIO COMMON A LA RANGE-847183

More information

Quantity required : 2

CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915

4
P2R reference P2R reference 72876
Maker reference Maker reference CM001915

CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915

More information

Quantity required : 3

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

5
P2R reference P2R reference 72706
Maker reference Maker reference B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

More information

Quantity required : 1

B011032 - COLLIER

6
P2R reference P2R reference 111762
Maker reference Maker reference B011032

B011032 CLAMP

More information

Quantity required : 1

CLAMP HOSE COOLING (21 MM) OEM PIAGGIO COMMON A LA GAMMECM001927

7
P2R reference P2R reference 72886
Maker reference Maker reference CM001927

CLAMP HOSE COOLING (21 MM) OEM PIAGGIO COMMON A LA GAMMECM001927

More information

Quantity required : 2

B010692 - TUBE BLOW-BY

8
P2R reference P2R reference 114786
Maker reference Maker reference B010692

B010692 TUBE BLOW-BY

More information

Quantity required : 1

B010693 - TUBE D'HUILE

9
P2R reference P2R reference 113552
Maker reference Maker reference B010693

B010693 TUBE D'HUILE

More information

Quantity required : 1

B010917 - TUBE DRENAGE D'HUILE

10
P2R reference P2R reference 111934
Maker reference Maker reference B010917

B010917 TUBE DRENAGE D'HUILE

More information

Quantity required : 1

CLAMP HOSE COOLING (21 MM) OEM PIAGGIO COMMON A LA GAMMECM001927

11
P2R reference P2R reference 72886
Maker reference Maker reference CM001927

CLAMP HOSE COOLING (21 MM) OEM PIAGGIO COMMON A LA GAMMECM001927

More information

Quantity required : 2

B010637 - EQUERRE

12
P2R reference P2R reference 113851
Maker reference Maker reference B010637

B010637 BRACKET

More information

Quantity required : 1

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

13
P2R reference P2R reference 72706
Maker reference Maker reference B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

More information

Quantity required : 1
