Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 1000 Porter D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

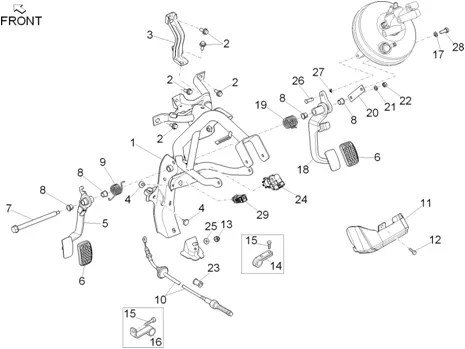

Instalation du freins - transmisisons : 05.08 GROUPE PÉDALES - LEVIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/345/Porter_D120_E5_2010-2015_05.08.PNG)
1 |
B007924 BRACKET PEDAL More informationQuantity required : 1 |
||||||
|
1 |
B023139 BRACKET PEDAL More informationQuantity required : 1 |
||||||
|
2 |
D9165160820 BOLT More informationQuantity required : 5 |
||||||
|
3 |
B000485 BRACKET PEDALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/7/img/113357.jpg)
4 |
BUFFER RUBBER DE PEDALE CLUTCH OEM PIAGGIO PORTER 1998-2020-1E000539 More informationQuantity required : 2 |
||||||
|
4 |
BUFFER RUBBER DE PEDALE CLUTCH OEM PIAGGIO PORTER 1998-2020-1E000539 More informationQuantity required : 2 |
||||||
|
5 |
B004190 PEDALE D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
5 |
B007876 PEDALE D'EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/6/8/img/112068.jpg)
6 |
PROTECTOR/RUBBER DE PEDALE OEM PIAGGIO PORTER 2020 <-262128 More informationQuantity required : 2 |
||||||
|
7 |
SPINDLE PEDALE CLUTCH OEM PIAGGIO PORTER 2020 <-D3132487Z02 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/2/4/img/115124.jpg)
8 |
9004386115000 - BUSE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/5/1/0/img/114510.jpg)
9 |
SPRING PEDALE CLUTCH OEM PIAGGIO PORTER 2020 <-9004508350000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/0/1/9/img/120019.jpg)
10 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO PORTER DIESEL 2010 >-CM256202 More informationQuantity required : 1 |
||||||
|
11 |
B004412 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
12 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 1 |
||||||
|
13 |
D9004179052 NUT More informationQuantity required : 1 |
||||||
|
14 |
9004462157000 CLIPS More informationQuantity required : 2 |
||||||
|
15 |
D9165260616 - BOULON More informationQuantity required : 2 |
||||||
|
15 |
D9165260616 - BOULON More informationQuantity required : 2 |
||||||
|
16 |
D9004461423 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
17 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
|
18 |
B004219 PEDALE BRAKE More informationQuantity required : 1 |
||||||
|
19 |
9004508351000 SPRING More informationQuantity required : 1 |
||||||
|
20 |
3132587Z01000 PLATE BLOCAGE SPINDLE More informationQuantity required : 1 |
||||||
|
21 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
|
22 |
D9411040800 NUT More informationQuantity required : 1 |
||||||
|
23 |
D9004540022 BUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/8/9/3/img/116893.jpg)
24 |
CONTACTEUR DE STOP OEM PIAGGIO PORTER DIESEL 2010 < 2015, NP6 2021 >-B000744 More informationQuantity required : 1 |
||||||
|
25 |
D9461410800 WASHER More informationQuantity required : 1 |
||||||
|
26 |
9004240142000 PERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
27 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE-003208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
28 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 1 |
||||||
|
29 |
B000745 CONTACT DE CLUTCH More informationQuantity required : 1 |
