Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 1000 Porter D120 E5 2010-2015 PIAGGIO VU

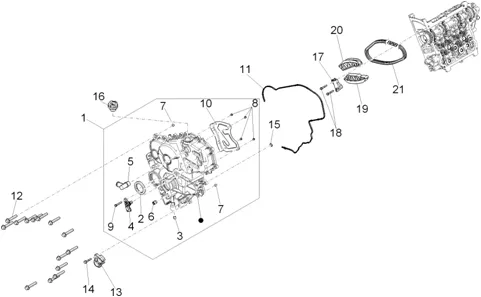

Moteur : 01.14 COURROIE DE DISTRIBUTION ET COUVERCLE
Courroie de distribution et couvercle
Search
B011340 - COUVERTURE DISTRIBUTION

1
P2R reference P2R reference 122711
Maker reference Maker reference B011340

COVER TIMING OEM PIAGGIO PORTER DIESEL 2010 > 2015-SPB011340

More information

Quantity required : 1

882171 - BAGUE

2
P2R reference P2R reference 115171
Maker reference Maker reference 882171

OIL SEAL COVER TIMING OEM PIAGGIO PORTER 2010 > 2015-882171

More information

Quantity required : 1

B010682 - BOUCHON

3
P2R reference P2R reference 111827
Maker reference Maker reference B010682

B010682 CAP

More information

Quantity required : 1

889444 - CAPTEUR DE VITESSE CAMES

4
P2R reference P2R reference 117235
Maker reference Maker reference 889444

889444 SENSOR OF SPEED CAMS

More information

Quantity required : 1

B010419 - RACCORD EAU

5
P2R reference P2R reference 113510
Maker reference Maker reference B010419

B010419 FITTING WATER

More information

Quantity required : 1

B010732 - BAGUE

6
P2R reference P2R reference 115806
Maker reference Maker reference B010732

B010732 BUSH

More information

Quantity required : 1

BUSH SPACER DE CENTRAGE (8X10) OEM PIAGGIO COMMON A LA RANGE-411209

7
P2R reference P2R reference 66356
Maker reference Maker reference 411209

BUSH SPACER DE CENTRAGE (8X10) OEM PIAGGIO COMMON A LA RANGE-411209

More information

Quantity required : 2

840541 - VIS

8
P2R reference P2R reference 110649
Maker reference Maker reference 840541

840541 SCREW

More information

Quantity required : 4

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

9
P2R reference P2R reference 72723
Maker reference Maker reference B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

9
P2R reference P2R reference 72723
Maker reference Maker reference 434541

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

888428 - COUVERTURE VOLET

10
P2R reference P2R reference 112410
Maker reference Maker reference 888428

888428 COVER VOLET

More information

Quantity required : 1

889099 - JOINT

11
P2R reference P2R reference 114257
Maker reference Maker reference 889099

GASKET CASING DE TIMING OEM PORTER DIESEL 2010 > 2015-889099

More information

Quantity required : 1

830784 - VIS

12
P2R reference P2R reference 110033
Maker reference Maker reference 830784

830784 SCREW

More information

Quantity required : 14

B010678 - COLLIER

13
P2R reference P2R reference 112531
Maker reference Maker reference B010678

B010678 CLAMP

More information

Quantity required : 1

B010670 - VIS

14
P2R reference P2R reference 110850
Maker reference Maker reference B010670

B010670 SCREW

More information

Quantity required : 1

O-RING (12. 5X2. 5) OEM PIAGGIO COMMON A LA RANGE-006716

15
P2R reference P2R reference 63833
Maker reference Maker reference 0067165

O-RING (12. 5X2. 5) OEM PIAGGIO COMMON A LA RANGE-006716

More information

Quantity required : 1

B010738 - BOUCHON D'HUILE

16
P2R reference P2R reference 113515
Maker reference Maker reference B010738

B010738 CAP D'HUILE

More information

Quantity required : 1

B011429 - TENDEUR COURR.

17
P2R reference P2R reference 142983
Maker reference Maker reference B011429

TENDEUR DRIVE BELT OF TIMING OEM PIAGGIO PORTER DIESEL 2010 > 2015-B011429

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

18
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 2

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

18
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 2

B011414 - TENDEUR COURR DISTRI

19
P2R reference P2R reference 134734
Maker reference Maker reference B011414

B011414 TENDEUR COURR DISTRI

More information

Quantity required : 1

TENDEUR COURR .

20
P2R reference P2R reference
Maker reference Maker reference 889842

TENDEUR COURR .

882194 - COURROIE DISTRIBUTIO

21
P2R reference P2R reference 118538
Maker reference Maker reference 882194

882194 - COURROIE DISTRIBUTIO

More information

Quantity required : 1
