Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 1000 Porter D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

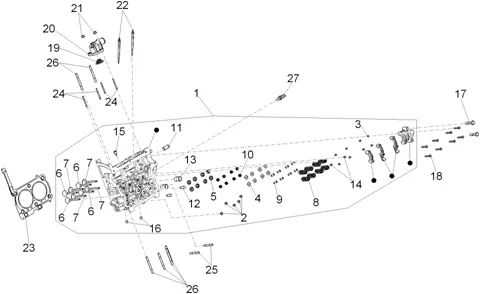

Moteur : 01.08 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/345/Porter_D120_E5_2010-2015_01.08.PNG)
1 |
B011378 CYLINDER HEAD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
2 |
CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433 More informationQuantity required : 5 |
|||||||||
|
3 |
B010646 STUD More informationQuantity required : 8 |
|||||||||
|
4 |
888062 CUVETTE More informationQuantity required : 8 |
|||||||||
|
5 |
882218 CUVETTE More informationQuantity required : 8 |
|||||||||
|
6 |
882202 VALVE ADM. More informationQuantity required : 4 |
|||||||||
|
7 |
882203 VALVE More informationQuantity required : 4 |
|||||||||
|
8 |
882204 SPRING More informationQuantity required : 8 |
|||||||||
|
9 |
882220 CUVETTE More informationQuantity required : 16 |
|||||||||
|
10 |
882207 - JOINT SPIE More informationQuantity required : 8 |
|||||||||
|
11 |
888223 HOSE WATER More informationQuantity required : 1 |
|||||||||
|
12 |
888042 STUD More informationQuantity required : 2 |
|||||||||
|
13 |
888214 BUSH More informationQuantity required : 2 |
|||||||||
|
14 |
B010729 STUD More informationQuantity required : 2 |
|||||||||
|
15 |
889787 CAP More informationQuantity required : 1 |
|||||||||
|
16 |
B010682 CAP More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/2/img/109872.jpg)
17 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623 More informationQuantity required : 2 |
|||||||||
|
18 |
888196 SCREW More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/1/8/8/img/119188.jpg)
19 |
THERMOSTAT OEM PIAGGIO PORTER D120 2010 > 2015/660 RS, TUONO, TUAREG 2020 >-888775 More informationQuantity required : 1 |
|||||||||
|
20 |
889120 FLASQUE More informationQuantity required : 1 |
|||||||||
|
21 |
434078 - ECROU More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/6/6/img/115866.jpg)
22 |
SPARK PLUG DE PRECHAUFFAGE OEM PIAGGIO PORTER DIESEL 2010 > 2015-889767 More informationQuantity required : 2 |
|||||||||
|
23 |
CM040001 CYLINDER HEAD GASKET More informationQuantity required : 1 |
|||||||||
|
23 |
CM040002 CYLINDER HEAD GASKET More informationQuantity required : 1 |
|||||||||
|
23 |
CM040003 CYLINDER HEAD GASKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
24 |
STUD (8X46) OEM PIAGGIO MULTI-USAGE COMMON LA RANGE-1A003632R More informationQuantity required : 4 |
|||||||||
|
25 |
889670 STUD More informationQuantity required : 2 |
|||||||||
|
26 |
B010934 STUD More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/7/2/img/117472.jpg)
27 |
SENSOR/SONDE TEMPERATURE WATER OEM PIAGGIO PORTER DIESEL 2010 > 2015-882356 More informationQuantity required : 1 |
|||||||||
