Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 1000 Porter D120 E5 2010-2015 PIAGGIO VU

Suspensions - roues : 04.03 SUSPENSION AVANT - AMORTISSEUR/S

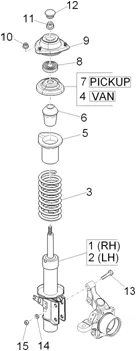

Suspension avant - Amortisseur/s
Search
1E000793R - AMORTISSEUR AVANT DROITE

1
P2R reference P2R reference 121601
Maker reference Maker reference 1E000793R

1E000793R SHOCK ABSORBER FRONT RIGHT

More information

Quantity required : 1

1E000794R - AMORTISSEUR AVANT GAUCHE

2
P2R reference P2R reference 121604
Maker reference Maker reference 1E000794R

1E000794R SHOCK ABSORBER FRONT LEFT

More information

Quantity required : 1

B005384 - RESSORT

3
P2R reference P2R reference 120050
Maker reference Maker reference B005384

B005384 SPRING

More information

Quantity required : 2

LOGEMENT UPPER SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-D4847087Z02

4
P2R reference P2R reference 115028
Maker reference Maker reference D4847087Z02

LOGEMENT UPPER SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-D4847087Z02

More information

Quantity required : 2

PROTECTOR-POUSSIERE SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-4855987Z01000

5
P2R reference P2R reference 111900
Maker reference Maker reference 4855987Z01000

PROTECTOR-POUSSIERE SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-4855987Z01000

More information

Quantity required : 2

BUFFER DE FIN DE COURSE SHOCK ABSORBER OEM PIAGGIO PORTER < 2020-658155

6
P2R reference P2R reference 114103
Maker reference Maker reference 658155

BUFFER DE FIN DE COURSE SHOCK ABSORBER OEM PIAGGIO PORTER < 2020-658155

More information

Quantity required : 2

LOGEMENT UPPER SHOCK ABSORBER OEM PIAGGIO PORTER-4847087Z01000

7
P2R reference P2R reference 116323
Maker reference Maker reference 4847087Z01000

LOGEMENT UPPER SHOCK ABSORBER OEM PIAGGIO PORTER-4847087Z01000

More information

Quantity required : 2

BUSH BEARING SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-9004386101

8
P2R reference P2R reference 158421
Maker reference Maker reference 9004386101

BUSH BEARING SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-9004386101

More information

Quantity required : 2

BUSH BEARING SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-9004386101

8
P2R reference P2R reference 158421
Maker reference Maker reference 9004386101000

BUSH BEARING SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 2020 <-9004386101

More information

Quantity required : 2

RUBBER MOUNT UPPER SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 1998 > 2020-B004342

9
P2R reference P2R reference 117326
Maker reference Maker reference B004342

RUBBER MOUNT UPPER SHOCK ABSORBER FRONT OEM PIAGGIO PORTER 1998 > 2020-B004342

More information

Quantity required : 2

9004179075000 - ECROU

10
P2R reference P2R reference 111952
Maker reference Maker reference 9004179075000

9004179075000 - ECROU

More information

Quantity required : 6

NUT FLANGE (12X1, 25) OEM PIAGGIO COMMON A LA RANGE-264878

11
P2R reference P2R reference 110475
Maker reference Maker reference 264878

NUT FLANGE (12X1, 25) OEM PIAGGIO COMMON A LA RANGE-264878

More information

Quantity required : 2

4868487502000 - PARE-POUSSIER

12
P2R reference P2R reference 112683
Maker reference Maker reference 4868487502000

4868487502000 - PARE-POUSSIER

More information

Quantity required : 2

SCREW TH (12X55) OEM PIAGGIO COMMON A LA RANGE-1E003312

13
P2R reference P2R reference 112167
Maker reference Maker reference 9117171255000

SCREW TH (12X55) OEM PIAGGIO COMMON A LA RANGE-1E003312

More information

Quantity required : 4

D9451201200 - RONDELLE

14
P2R reference P2R reference 110303
Maker reference Maker reference D9451201200
Replaced by référence Replaced by référence 199692

D9451201200 - RONDELLE

More information

Quantity required : 4

NUT (M12) OEM PIAGGIO COMMON A LA RANGE-D9411551200

15
P2R reference P2R reference 110047
Maker reference Maker reference D9411551200

NUT (M12) OEM PIAGGIO COMMON A LA RANGE-D9411551200

More information

Quantity required : 4
