Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 1000 Porter D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

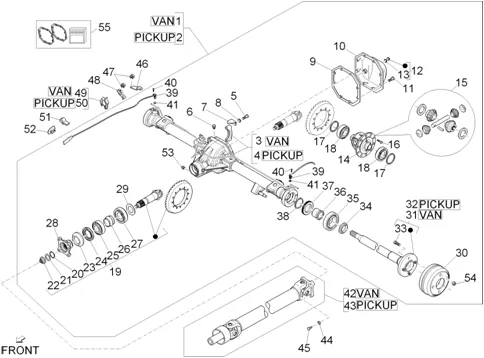

Moteur : 01.25 TRANSMISSION ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/345/Porter_D120_E5_2010-2015_01.25.PNG)
1 |
B004775 BODY ESSIEU More informationQuantity required : 1 |
|||||||||
|
2 |
B004770 BODY ESSIEU More informationQuantity required : 1 |
|||||||||
|
3 |
837225 BODY ESSIEU More informationQuantity required : 1 |
|||||||||
|
4 |
837212 BODY ESSIEU More informationQuantity required : 1 |
|||||||||
|
5 |
9004101607000 BOLT More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/5/0/6/img/115506.jpg)
6 |
SCREW OF PURGE/RENIFLARD PONT REAR OEM PIAGGIO PORTER 2020 <-9004915043000 More informationQuantity required : 1 |
|||||||||
|
7 |
4131687Z01000 PLATE More informationQuantity required : 2 |
|||||||||
|
8 |
837109 GASKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/9/3/img/116193.jpg)
9 |
GASKET COVER ESSIEU OEM PIAGGIO PORTER MULTITECH STANDARD 2010 > 2020-837161 More informationQuantity required : 1 |
|||||||||
|
10 |
837163 COVER More informationQuantity required : 1 |
|||||||||
|
11 |
9004101609000 BOLT More informationQuantity required : 8 |
|||||||||
|
12 |
493434 - BOUCHON More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/8/5/img/111685.jpg)
13 |
GASKET OF CAP DE PONT REAR OEM PIAGGIO PORTER 2002 > 2020-493435 More informationQuantity required : 8 |
|||||||||
|
14 |
837179 BOX DIFF. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/7/6/5/img/123765.jpg)
15 |
KIT GEAR TRANSMISSION REAR OEM PIAGGIO PORTER 1995 > 2020-0441387Z01000 More informationQuantity required : 1 |
|||||||||
|
16 |
9004109212000 BOLT More informationQuantity required : 10 |
|||||||||
|
17 |
ENTRETOISE 5,50 |
|||||||||
|
17 |
ENTRETOISE 5,60 |
|||||||||
|
17 |
ENTRETOISE 5,70 |
|||||||||
|
17 |
ENTRETOISE 5,80 |
|||||||||
|
17 |
CALE (5. 1) DE TRANSMISSION REAR OEM PIAGGIO PORTER 2020 <-9004564518000 More informationQuantity required : 2 |
|||||||||
|
17 |
9004564519000 SPACER More informationQuantity required : 2 |
|||||||||
|
17 |
9004564520000 EPAISSEUR More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/8/3/img/117783.jpg)
17 |
SPACER OF DIFFERENTIEL (5, 4 MM) OEM PIAGGIO PORTER-9004564521000 More informationQuantity required : 2 |
|||||||||
|
17 |
9004564526000 SPACER More informationQuantity required : 2 |
|||||||||
|
17 |
9004564527000 SPACER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/6/5/img/121265.jpg)
18 |
BEARING HOUSING DIFFERENCIEL REAR OEM PIAGGIO PORTER 2020 <-9004366066000 More informationQuantity required : 2 |
|||||||||
|
19 |
837218 KIT HOUSING D'ENGRENAGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/4/1/img/111941.jpg)
20 |
O-RING SHAFT DE TRANSMISSION OEM PIAGGIO PORTER STANDARD 2020 <-9004301252000 More informationQuantity required : 1 |
|||||||||
|
21 |
WASHER DE COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 < 9004201724000 More informationQuantity required : 1 |
|||||||||
|
22 |
NUT (18X1. 5) DE COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 <-9004178044000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/9/4/img/114694.jpg)
23 |
PROTECTOR POUSSIERE DE COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 <-4125287Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/9/4/7/img/116947.jpg)
24 |
GASKET SHAFT DE COUPLE CONIQUE DE PONT REAR OEM PIAGGIO PORTER-9004311330000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/9/2/3/img/120923.jpg)
25 |
BEARING (25X62X18. 25) A ROULEAUX CONIQUES SHAFT DE COUPLE OEM PIAGGIO PORTER STANDARD 2020 <-9004366065000 More informationQuantity required : 1 |
|||||||||
|
26 |
SPACER DE COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 <-4123187Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/3/4/5/img/121345.jpg)
27 |
BEARING (30X72X20. 75) CONIQUE SHAFT DE COUPLE OEM PIAGGIO PORTER 2020 <-9004366067000 More informationQuantity required : 1 |
|||||||||
|
28 |
837219 FLANGE 146011 More informationQuantity required : 1 |
|||||||||
|
29 |
9004564508000 GASKET More informationQuantity required : 1 |
|||||||||
|
29 |
9004564509000 GASKET More informationQuantity required : 1 |
|||||||||
|
29 |
9004564510000 GASKET More informationQuantity required : 1 |
|||||||||
|
29 |
9004564511000 GASKET More informationQuantity required : 1 |
|||||||||
|
29 |
9004564512000 GASKET More informationQuantity required : 1 |
|||||||||
|
29 |
SPACER OF COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 <-9004564513000 More informationQuantity required : 1 |
|||||||||
|
29 |
9004564514000 EPAISSEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/9/8/3/img/115983.jpg)
29 |
CALE TRANSMISSION REAR (3. 2) OEM PIAGGIO PORTER 2020 <-9004564515000 More informationQuantity required : 1 |
|||||||||
|
29 |
9004564516000 GASKET More informationQuantity required : 1 |
|||||||||
|
29 |
9004564517000 GASKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/2/3/img/122223.jpg)
30 |
TAMBOUR OF BRAKE REAR OEM PIAGGIO PORTER STANDARD 1995 > 2020-4243187Z03000 More informationQuantity required : 2 |
|||||||||
|
31 |
SHAFT OF PONT REAR L618 LEFT OEM PIAGGIO PORTER STANDARD 2010 > 2020-837174 More informationQuantity required : 1 |
|||||||||
|
32 |
SHAFT OF PONT REAR L668 RIGHT OEM PIAGGIO PORTER STANDARD 2010 > 2020-837175 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/0/0/img/113300.jpg)
33 |
BOLT DE HUB REAR OEM PIAGGIO PORTER 2020-9004912054000 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/1/7/img/116717.jpg)
34 |
SPACER SHAFT DE REAR WHEEL OEM PIAGGIO PORTER 2020 <-4232987Z01000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/9/4/7/img/120947.jpg)
35 |
BEARING (30X72X19) SHAFT DE REAR WHEEL OEM PIAGGIO PORTER-9004363243000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/6/1/3/img/120613.jpg)
36 |
BUSH/SPACER TRANSMISSION REAR OEM PIAGGIO PORTER 2010 > 2020-837162 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/6/3/4/img/121634.jpg)
37 |
CODEUR/WHEEL PHONIQUE OEM PIAGGIO PORTER STANDARD 2010 > 2020 E4-837171 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/9/4/img/116794.jpg)
38 |
OIL SEAL (40X80X10) SHAFT DE TRANSMISSION REAR OEM PIAGGIO PORTER E4 2010 >-837220 More informationQuantity required : 2 |
|||||||||
|
39 |
SENSOR FOR REAR ABS "PIAGGIO GENUINE PART" 300-350-500 MP3 2015>, 125-300 VESPA GTS 2016>, PORTER E4 2010> -B000526 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/9/img/198579.jpg)
39 |
SENSOR OF BRAKE REAR ABS OEM PIAGGIO 125-300 GTS 2016 >/400-530 MP3 2022 > PORTER E4 2010 >-1D003828 More informationQuantity required : 2 |
|||||||||
|
40 |
837158 BOLT More informationQuantity required : 2 |
|||||||||
|
41 |
837159 GASKET More informationQuantity required : 2 |
|||||||||
|
42 |
CM038105 TRANSMISSION More informationQuantity required : 1 |
|||||||||
|
43 |
CM038106 TRANSMISSION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/1/img/110471.jpg)
44 |
RONELLE SHAFT DE TRANSMISSION OEM PIAGGIO PORTER 2020 <-9451201000000 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/2/4/img/111024.jpg)
45 |
SCREW SHAFT DE TRANSMISSION OEM PIAGGIO PORTER 2020 <-264451 More informationQuantity required : 4 |
|||||||||
|
46 |
B005349 BRACKET More informationQuantity required : 2 |
|||||||||
|
46 |
|
|||||||||
|
47 |
191002-SPRING More informationQuantity required : 4 |
|||||||||
|
48 |
B005350 BRACKET More informationQuantity required : 1 |
|||||||||
|
49 |
B005868 SPRING More informationQuantity required : 2 |
|||||||||
|
50 |
B005867 SPRING More informationQuantity required : 2 |
|||||||||
|
51 |
B005030 CLAMP More informationQuantity required : 2 |
|||||||||
|
52 |
B005629 SPRING More informationQuantity required : 2 |
|||||||||
|
53 |
9004341070000 CAP More informationQuantity required : 1 |
|||||||||
|
54 |
837221 NUT More informationQuantity required : 2 |
|||||||||
|
55 |
850667 KIT EXAMEN SPINDLE REAR * More informationQuantity required : 1 |
|||||||||
