Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 1000 Porter D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

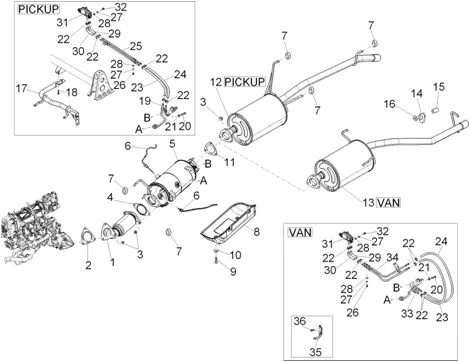

Moteur : 01.37 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/345/Porter_D120_E5_2010-2015_01.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/0/2/6/img/123026.jpg)
1 |
REAR EXHAUST PIPE "PIAGGIO GENUINE PART" PORTER DIESEL 2010> -B007423 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/1/3/img/112613.jpg)
2 |
GASKET SILENCER EXHAUST OEM PIAGGIO PORTER DIESEL 2010 > 2015-B004734 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
3 |
NUT FLANGE M8 MOUNTING EXHAUST OEM PIAGGIO COMMON ALA RANGE-015341 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/6/6/img/112566.jpg)
4 |
GASKET EXHAUST OEM PIAGGIO PORTER DIESEL-B007316 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/3/4/8/img/124348.jpg)
5 |
B007434 - TUYAU CONVERTISSEUR PLEIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/4/9/4/img/121494.jpg)
6 |
SENSOR OF TEMPERATURE CATHALISEUR OEM PIAGGIO PORTER DIESEL-B005438 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/1/9/img/113419.jpg)
7 |
RUBBER MOUNT SILENCER EXHAUST OEM PIAGGIO PORTER 2020 <-1756787Z03000 More informationQuantity required : 7 |
||||||
8 |
B005441 PROTECTOR-CHALEUR More informationQuantity required : 1 |
||||||
|
9 |
658848 SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
10 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/4/2/img/112242.jpg)
11 |
GASKET OF SILENCER OEM PIAGGIO PORTER 2010 > 2015 DIESEL-B004417 More informationQuantity required : 1 |
||||||
|
12 |
B023264 TUBE ECHAPP. More informationQuantity required : 1 |
||||||
|
13 |
B007425 TUBE ECHAPP. More informationQuantity required : 1 |
||||||
|
14 |
D1755387Z01 SILENT BLOC ECHAPP More informationQuantity required : 1 |
||||||
|
15 |
9004560227000 SPACER More informationQuantity required : 1 |
||||||
|
16 |
D9004209129 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
B005828 BRACKET More informationQuantity required : 1 |
||||||
|
18 |
D9165160618 BOLT More informationQuantity required : 4 |
||||||
|
19 |
B004196 TUBE OF PRESSURE More informationQuantity required : 4 |
||||||
|
20 |
658848 SCREW More informationQuantity required : 1 |
||||||
|
21 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
22 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 8 |
||||||
|
23 |
B007899 HOSE OF PRESSURE More informationQuantity required : 1 |
||||||
|
24 |
B007900 HOSE OF PRESSURE More informationQuantity required : 1 |
||||||
|
25 |
B004197 HOSE OF PRESSURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
26 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
27 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
28 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 4 |
||||||
|
29 |
B004198 HOSE OF PRESSURE More informationQuantity required : 1 |
||||||
|
30 |
B004199 HOSE OF PRESSURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/0/8/img/122808.jpg)
31 |
SENSOR OF PRESSION D'ECHAPPEMENT OEM PIAGGIO PORTER DIESEL-660614 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
32 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 2 |
||||||
|
33 |
B004204 TUBE OF PRESSURE More informationQuantity required : 1 |
||||||
|
34 |
B006158 TUBE OF PRESSURE BRAKE More informationQuantity required : 1 |
||||||
|
35 |
B005817 CROCHET LEFT More informationQuantity required : 1 |
||||||
|
36 |
|
