Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

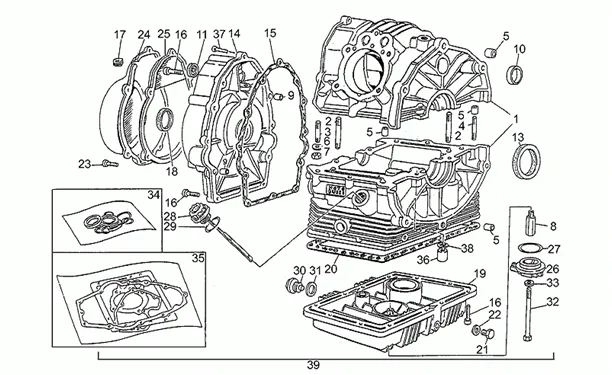

Moteur : 34.35 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_34.35.PNG)
1 |
|
||||||
|
1 |
CARTERS COUPLES |
||||||
|
2 |
GU96451560-SCREW WITHOUT HEAD More informationQuantity required : 4 |
||||||
|
3 |
GU96451430-SCREW WITHOUT HEAD More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/2/1/img/132821.jpg)
4 |
STUD (8X55) OEM PIAGGIO COMMON A LA RANGE-GU96508055 More informationQuantity required : 2 |
||||||
|
5 |
GU19015020-BUSH More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
6 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 6 |
||||||
|
7 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 6 |
||||||
|
8 |
GU190038006-FITTING More informationQuantity required : 1 |
||||||
|
9 |
GU19002020-BUSH 6, 6X9X13 More informationQuantity required : 2 |
||||||
|
10 |
886719 - BOUCHON More informationQuantity required : 1 |
||||||
|
11 |
GU90401530 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/5/6/img/99156.jpg)
13 |
OIL SEAL (53X72X12) VILLEBREQUIN OEM MOTO-GUZZI V7, V9, V50, V35, NEVADA, BREVA-886365 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/4/img/125184.jpg)
13 |
GASKET VILLEBREQUIN COTE CLUTCH OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90405367 More informationQuantity required : 1 |
||||||
|
14 |
COUVERCLE DE DISTRIB |
||||||
|
14 |
COUVERCLE DE DISTRIB |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/8/9/img/99289.jpg)
15 |
GASKET OF COVER OEM MOTO GUZZI BREVA, NEVADA, STRADA, TARGA, V7, V85, V9-887003 More informationQuantity required : 1 |
||||||
|
16 |
GU98622325-SCREW M6X25 More informationQuantity required : 22 |
||||||
|
17 |
GU19007700-RUBBER More informationQuantity required : 1 |
||||||
|
18 |
OIL SEAL/BUSH (28X38X7) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU90402840 More informationQuantity required : 1 |
||||||
|
19 |
GU20003510 - CARTER INFERIEUR GRIS More informationQuantity required : 1 |
||||||
|
19 |
CARTER D HUILE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/0/img/99290.jpg)
20 |
GASKET OF CASING ENGINE OEM PIAGGIO MOTO-GUZZI 750 V-7, BREVA, NEVADA-887004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
21 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
22 |
GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
23 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98620335 More informationQuantity required : 5 |
||||||
|
24 |
GU32001610 - COUVERCLE More informationQuantity required : 1 |
||||||
|
25 |
GU27001136-FLANGE More informationQuantity required : 1 |
||||||
|
26 |
GU19003400 - COUVERCLE FILTRE AIR More informationQuantity required : 1 |
||||||
|
26 |
GU20003410 - PETIT COUVERCLE GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/3/img/132243.jpg)
27 |
GASKET COVER DE OIL FILTER OEM PIAGGIO MOTO-GUZZI V7, V9, V85-GU90706444 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/8/2/0/img/98820.jpg)
28 |
JAUGE A OIL POTEUR OEM PIAGGIO MOTO-GUZZI 750 NEVADA, V7, BREVA, STRADA, V50, V65-883826 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/3/img/132233.jpg)
29 |
GU90706282 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
30 |
GU12003702-CAP VID. OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
31 |
GASKET OF CAP DE VIDANGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU95100709 More informationQuantity required : 1 |
||||||
|
32 |
GU27152885-BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
33 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 1 |
||||||
|
34 |
GU31999565 - JOINT SPY-SERIE More informationQuantity required : 1 |
||||||
|
35 |
ENSEMBLE DE JOINTS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
36 |
NUT COLONNE DE STEERING OU DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU13021900 More informationQuantity required : 4 |
||||||
|
37 |
GU98680330-SCREW TCEI M6X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
38 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 4 |
||||||
|
39 |
MOTEUR |
||||||
|
39 |
|
