Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

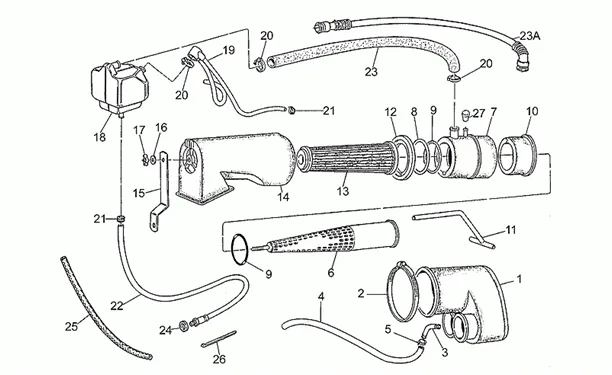

Chassis : 33.12 FILTRE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_33.12.PNG)
1 |
GU19114300 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
2 |
GU93305092 - COLLIER More informationQuantity required : 1 |
||||||
|
3 |
GU17114650-FITTING COUDE More informationQuantity required : 1 |
||||||
|
4 |
GU00823944050-TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
|
5 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 1 |
||||||
|
6 |
SUPPORT FILTRE |
||||||
|
7 |
GU19156701 - BOITIER RENIFLARD More informationQuantity required : 1 |
||||||
|
8 |
GU19113900 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/7/img/132247.jpg)
9 |
GU90706552 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
10 |
GU19156900-ELEMENT AR More informationQuantity required : 1 |
||||||
|
11 |
GU19156001 - TUYAU DE RENIFL.INT More informationQuantity required : 1 |
||||||
|
12 |
GU17113450 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/9/img/129319.jpg)
13 |
AIR FILTER OEM MOTO GUZZI 350 NEVADA, NTX, 1000 SP, V35, V50-GU17113651 More informationQuantity required : 1 |
||||||
|
14 |
GU17114050 - CHAMBRE DE FILTRE A More informationQuantity required : 1 |
||||||
|
15 |
GU27114120 - PLAQUETTE D ARRET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
16 |
WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059 More informationQuantity required : 1 |
||||||
|
17 |
GU92670305 - ECROU More informationQuantity required : 1 |
||||||
|
18 |
Corp |
||||||
|
19 |
|
||||||
|
20 |
GU93305018-CLAMP More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
21 |
CLAMP FOR HOSE DE 13MM OEM PIAGGIO COMMON A LA RANGE-CM002907 More informationQuantity required : 3 |
||||||
|
22 |
GU27159360 - RENIFLARD More informationQuantity required : 1 |
||||||
|
23 |
TUYAU |
||||||
|
23 |
GU30157430 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/5/6/img/132256.jpg)
24 |
GASKET FIBRE (8. 25X15X1) RENIFLARD BOX A AIR OEM MOTO GUZZI-GU90714082 More informationQuantity required : 1 |
||||||
|
25 |
GU00823923140-GUAINA NERA D16 S0, 4 VETR More informationQuantity required : 1 |
||||||
|
26 |
GU61609630 - COLLIER More informationQuantity required : 1 |
||||||
|
27 |
GU19433000 - CAOUTCHOUC DE FERM. More informationQuantity required : 1 |
