Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

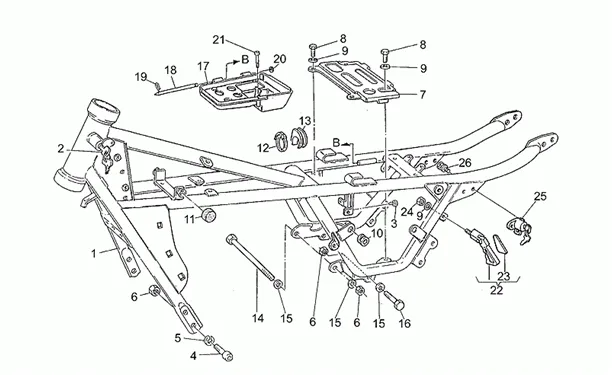

Chassis : 33.28 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_33.28.PNG)
1 |
CADRE |
||||||
|
1 |
GU31400181 - CADRE More informationQuantity required : 1 |
||||||
|
2 |
GU19782520 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
3 |
BUFFER STAND LATERLE OEM MOTO GUZZI COMMON A LA RANGE-GU19705900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/2/img/133142.jpg)
4 |
SCREW BTR (10X25) OEM PIAGGIO COMMON A LA RANGE-GU98622525 More informationQuantity required : 4 |
||||||
|
5 |
GU95120105-WASHER ELASTIC More informationQuantity required : 4 |
||||||
|
6 |
GU92602210 - ECROU More informationQuantity required : 6 |
||||||
|
7 |
GU27418210 - PLAQUE More informationQuantity required : 1 |
||||||
|
8 |
031117-BOLT S03111700 More informationQuantity required : 4 |
||||||
|
9 |
GU95004208 - RONDELLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
10 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
11 |
BUFFER DE FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU39103400 More informationQuantity required : 2 |
||||||
|
12 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 2 |
||||||
|
13 |
Caoutchouc |
||||||
|
14 |
GU98110199-PIVOT M10X205 More informationQuantity required : 1 |
||||||
|
15 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 7 |
||||||
|
16 |
GU98052555-SCREW More informationQuantity required : 2 |
||||||
|
17 |
|
||||||
|
18 |
AXE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/2/img/132762.jpg)
19 |
GOUPILLE (2. 2X26) OEM PIAGGIO COMMON A LA RANGE-GU95401215 More informationQuantity required : 1 |
||||||
|
20 |
GU90280005-JONC D ARRET More informationQuantity required : 1 |
||||||
|
21 |
VIS |
||||||
|
22 |
Poignée |
||||||
|
23 |
DECALCOMANIE D |
||||||
|
24 |
GU92630108-NUT More informationQuantity required : 1 |
||||||
|
25 |
GU66466815 - SERRURE CASQUE More informationQuantity required : 1 |
||||||
|
26 |
GU66468115-SCREW A ARRACHEMENT More informationQuantity required : 2 |
