Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

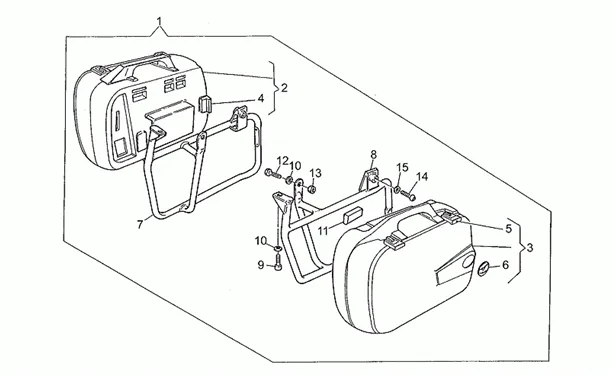

Chassis : 33.03 KIT COFFRE RIGIDE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_33.03.PNG)
1 |
GROUPE SACOCHE |
||||||
|
2 |
GU31482565-RH SUITCASE 30 L More informationQuantity required : 1 |
||||||
|
3 |
LH suitcase |
||||||
|
4 |
|
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/8/0/5/img/102805.jpg)
6 |
STICKER/STICKER/GRAPHIC " MOTO-GUZZI " FOR VALISES OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, 750 NEVADA-GU03482000 More informationQuantity required : 2 |
||||||
|
7 |
|
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
9 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98682420 More informationQuantity required : 2 |
||||||
|
10 |
GU95000208-WASHER More informationQuantity required : 4 |
||||||
|
11 |
|
||||||
|
12 |
GU98054422-SCREW More informationQuantity required : 2 |
||||||
|
13 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
||||||
|
14 |
GU98231045-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/6/2/img/110062.jpg)
15 |
WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404 More informationQuantity required : 2 |
