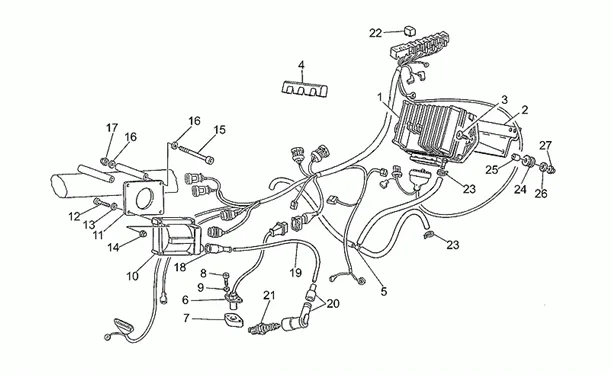

Chassis : 33.29 ALLUMAGE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_33.29.PNG)
1 |
Centrale MED 446A |
||||||
|
2 |
GU20723820-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/7/2/img/132972.jpg)
3 |
SCREW FLANGE BTR (6X22) OEM PIAGGIO COMMON A LA RANGE-GU98230622 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/4/img/129464.jpg)
4 |
PLATE ANTIVIBRATILE OEM MOTO GUZZI COMMON A LA RANGE-GU19025300 More informationQuantity required : 2 |
||||||
|
5 |
GU20108120 - TUYAU More informationQuantity required : 1 |
||||||
|
6 |
Capteur phase/tours |
||||||
|
7 |
GU31722065-FLASQUE More informationQuantity required : 1 |
||||||
|
8 |
GU98620222-SCREW More informationQuantity required : 2 |
||||||
|
9 |
GU95004205-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
10 |
BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500 More informationQuantity required : 2 |
||||||
|
11 |
GU207167205 - SUPPORT BOBINE More informationQuantity required : 2 |
||||||
|
12 |
GU98610125 - VIS More informationQuantity required : 4 |
||||||
|
13 |
GU95004204 - RONDELLE More informationQuantity required : 4 |
||||||
|
14 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 4 |
||||||
|
15 |
GU98620360-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
16 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 4 |
||||||
|
17 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
18 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
19 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350 More informationQuantity required : 2 |
||||||
|
20 |
AP8212219 - PIPE BOUGIE BLINDEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/9/7/img/69897.jpg)
21 |
SPARK PLUG BR8ES OEM PIAGGIO APRILIA 50-125 RS/MOTO-GUZZI 750 BREVA, NEVADA-861612 More informationQuantity required : 2 |
||||||
|
22 |
GU30732560 - RELAIS SIEMENS A302/B1008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/0/img/131930.jpg)
23 |
GU61108500-CLAMP D9 More informationQuantity required : 3 |
||||||
|
24 |
GU91551080-RUBBER More informationQuantity required : 2 |
||||||
|
25 |
GU91180608 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
26 |
GU95000206-WASHER More informationQuantity required : 2 |
||||||
|
27 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
