Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

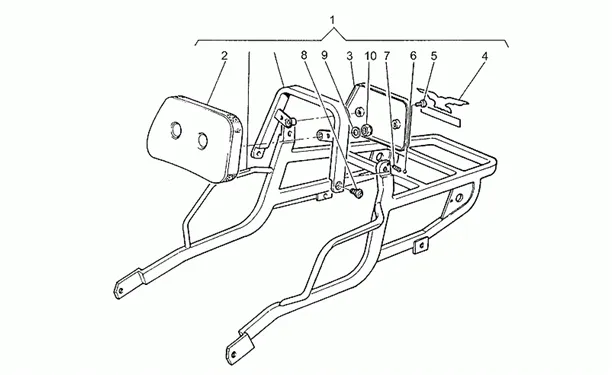

Chassis : 33.23 PORTE-BAGAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_33.23.PNG)
1 |
Kit porte-bagages |
||||||
|
2 |
GU03468000-CUSCINO POGGIASCHIENA More informationQuantity required : 1 |
||||||
|
3 |
GU03468200-COVER More informationQuantity required : 1 |
||||||
|
4 |
"Décalco ""Moto Guzzi""" |
||||||
|
4 |
"Décalco ""Moto Guzzi""" |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 2 |
||||||
|
5 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 2 |
||||||
|
6 |
GU92295704 - BILLE More informationQuantity required : 1 |
||||||
|
7 |
GU94321007-SPRING More informationQuantity required : 1 |
||||||
|
8 |
GU03468100-SCREW IX M8X1, 25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
9 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 2 |
||||||
|
10 |
GU92601206 - ECROU More informationQuantity required : 2 |
