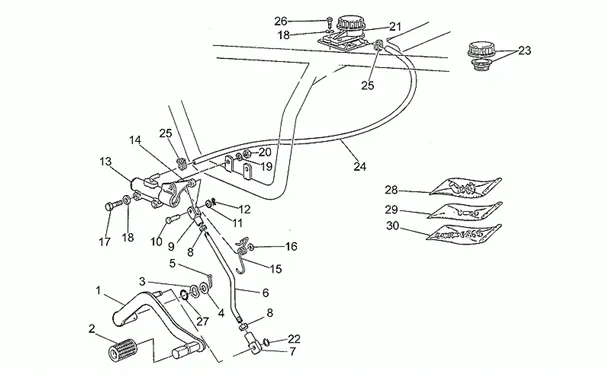

Chassis : 33.17 SYS.FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_33.17.PNG)
1 |
GU31677060 - PEDALE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
2 |
RUBBER SELECTEUR OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU14251001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
3 |
WASHER ELASTIC OEM MOTO GUZZI COMMON A LA RANGE-GU95129260 More informationQuantity required : 1 |
||||||
|
4 |
GU95004215 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
5 |
GU95500227-GOUPILLE More informationQuantity required : 1 |
||||||
|
6 |
GU31675280-ROD More informationQuantity required : 1 |
||||||
|
7 |
GU18257551-PIVOT More informationQuantity required : 1 |
||||||
|
8 |
GU92690073 - ECROU More informationQuantity required : 2 |
||||||
|
9 |
FOURCHETTE |
||||||
|
10 |
GU95770265 - GOUPILLE More informationQuantity required : 1 |
||||||
|
11 |
GU95129110 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.jpg)
12 |
GOUPILLE OEM MOTO GUZZI COMMON A LA RANGE-GU95500222 More informationQuantity required : 1 |
||||||
|
13 |
GU31666990-MAIT. CYL. BRAKE REAR More informationQuantity required : 1 |
||||||
|
14 |
GU19667500 - LEVIER COMM.POMPE More informationQuantity required : 1 |
||||||
|
15 |
GU19667600 - RESSORT MAN.FERIN AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
16 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 1 |
||||||
|
17 |
GU98052325 - VIS More informationQuantity required : 2 |
||||||
|
18 |
GU95000206-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
19 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
|
20 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
|
21 |
GU65663500 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/1/6/img/132116.jpg)
22 |
CLIPS/CIRCLIPS OEM MOTO GUZZI COMMON A LA RANGE-GU90271008 More informationQuantity required : 1 |
||||||
|
23 |
GU17661052-CAP TANK More informationQuantity required : 1 |
||||||
|
24 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/1/8/3/img/157183.jpg)
25 |
GU19157800 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
26 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
27 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
|
28 |
GU19659500-GR. REVISION RACCORDDE POMP More informationQuantity required : 1 |
||||||
|
29 |
GU19659600 - KIT DE GOUIJONS LEV More informationQuantity required : 1 |
||||||
|
30 |
GU17659352 - KIT REV.POMPE AR More informationQuantity required : 1 |
