Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

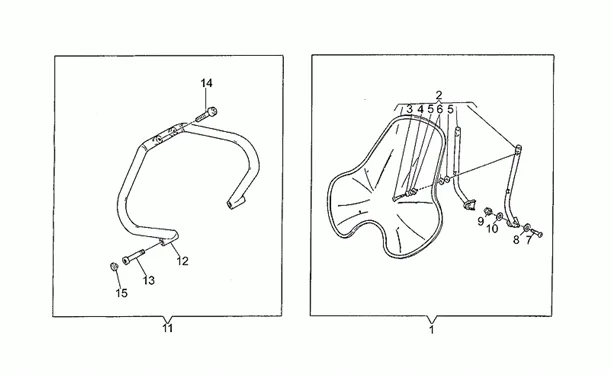

Chassis : 33.19 PARE-BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_33.19.PNG)
1 |
Pare-brise cpl. |
||||||
|
2 |
Pare-brise cpl. |
||||||
|
3 |
|
||||||
|
4 |
GU18577850-WASHER More informationQuantity required : 4 |
||||||
|
5 |
GU95100144 - RONDELLE More informationQuantity required : 8 |
||||||
|
6 |
GU93110060-RUBBER More informationQuantity required : 8 |
||||||
|
7 |
GU98231045-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
8 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
9 |
GU92630110-NUT M10X1, 5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/6/2/img/110062.jpg)
10 |
WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404 More informationQuantity required : 2 |
||||||
|
11 |
PARE-CHOCS |
||||||
|
12 |
GU31450266 - PARE-CHOC More informationQuantity required : 1 |
||||||
|
13 |
GU98620540-SCREW M10X40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
14 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98682420 More informationQuantity required : 2 |
||||||
|
15 |
GU93180216-RUBBER More informationQuantity required : 2 |
