Vehicle Exploded View - PIAGGIO MP3 300 4T 4V ie LT Ibrido 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

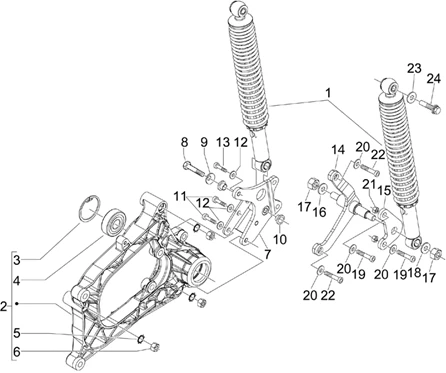

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/13/MP3_300_4T_4V_ie_LT_Ibrido_2010-2011_04.10.PNG)
1 |
650761 - AMMORTISSEUR AR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/2/1/img/87021.jpg)
2 |
EXHAUST MOUNTING PLATE "PIAGGIO GENUINE PART" 125-250-300 MP3, X7, 125-250 X-EVO -650095 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
3 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
4 |
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82545R More informationQuantity required : 1 |
||||||
|
5 |
829377 - CIRCLIP More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
6 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/3/3/img/87033.jpg)
7 |
PIN FOR SHOCK ABSORBER BRACKET "PIAGGIO GENUINE PART" 125-250-300 MP3 -650200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/5/2/img/86952.jpg)
8 |
649392 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
9 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/2/3/7/img/82237.jpg)
10 |
597149 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
11 |
844483 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
12 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
13 |
SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792 More informationQuantity required : 1 |
||||||
|
14 |
650240 - PATTES SUPPORT AMORTISSEUR More informationQuantity required : 1 |
||||||
|
15 |
651003 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/0/img/65370.jpg)
16 |
013962 - RONDELLE S01396200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
17 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
18 |
016626 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
19 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104 More informationQuantity required : 2 |
||||||
|
20 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 4 |
||||||
|
21 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
22 |
826298 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
23 |
178790 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
24 |
SCREW - FOR REAR SHOCK ABSORBER"PIAGGIO GENUINE PARTS" FOR ALL THE RANGE -268158 More informationQuantity required : 2 |
