Vehicle Exploded View - PIAGGIO MP3 300 4T 4V ie LT Ibrido 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

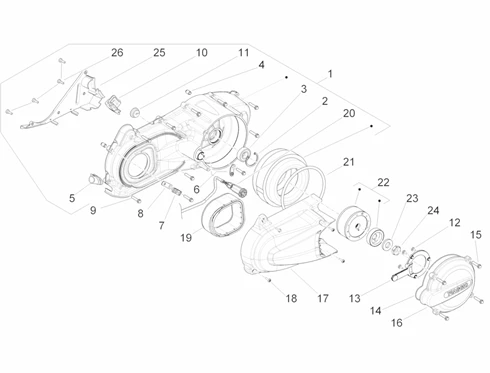

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/13/MP3_300_4T_4V_ie_LT_Ibrido_2010-2011_01.15.PNG)
1 |
8764325 - COUVERCLE TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/9/img/68559.jpg)
2 |
825667 - SEGMENT More informationQuantity required : 1 |
||||||
|
3 |
82932R - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
4 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 2 |
||||||
|
5 |
873384 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/8/img/69338.jpg)
6 |
844964 - COLLIER More informationQuantity required : 1 |
||||||
|
7 |
CM006911 - RESSORT More informationQuantity required : 1 |
||||||
|
8 |
641192 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
9 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 10 |
||||||
|
10 |
878643 - PASSE CABLES More informationQuantity required : 1 |
||||||
|
11 |
875779 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
12 |
430264 - VIS More informationQuantity required : 3 |
||||||
|
13 |
875440 - CAPTEUR More informationQuantity required : 1 |
||||||
|
14 |
848984 - JOINT More informationQuantity required : 1 |
||||||
|
15 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 4 |
||||||
|
16 |
875969 - COUVERCLE More informationQuantity required : 1 |
||||||
|
17 |
878052 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/0/img/69210.jpg)
18 |
842041 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/8/9/img/70589.jpg)
19 |
AIR FILTER FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 125 MP3, X7, X10, BEVERLY, VESPA GTS, 300 MP3, BEVERLY/GILERA 125 NEXUS/APRILIA 125 SR-MAX -875701 More informationQuantity required : 1 |
||||||
|
20 |
641157 - FAISCEAU CABLES - DEMMAREUR More informationQuantity required : 1 |
||||||
|
21 |
848983 - JOINT More informationQuantity required : 1 |
||||||
|
22 |
497578 - KIT CAPTEUR SENSOR/ROTOR More informationQuantity required : 1 |
||||||
|
23 |
875970 - RESSORT More informationQuantity required : 1 |
||||||
|
24 |
021216 - ECROU S02121600 More informationQuantity required : 1 |
||||||
|
25 |
877087 - SUPPORT More informationQuantity required : 1 |
||||||
|
26 |
873653 - VIS TARAUD More informationQuantity required : 4 |
