Vehicle Exploded View - PIAGGIO MP3 300 4T 4V ie LT Ibrido 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

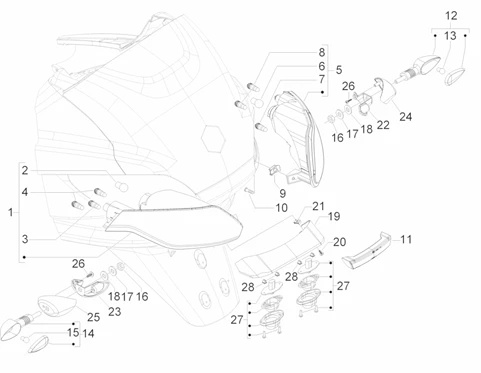

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/13/MP3_300_4T_4V_ie_LT_Ibrido_2010-2011_06.04.PNG)
1 |
641690 - CLIGNOTANT AR GAU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/3/3/img/86333.jpg)
1 |
TAILLIGHT- LEFT WITH FLASHER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007> 300-500 MP3 2010> -642168 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
2 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
3 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/4/img/67234.jpg)
4 |
LIGHT BULB - INDICATOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOOTER RANGE -581904 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/3/2/img/86332.jpg)
5 |
TAILLIGHT- RIGHT WITH FLASHER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010> -642167 More informationQuantity required : 1 |
|||||||||
|
5 |
TAILLIGHT- RIGHT WITH FLASHER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010> -642167 More informationQuantity required : 1 |
|||||||||
|
6 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746 More informationQuantity required : 1 |
|||||||||
|
7 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
|||||||||
|
8 |
LIGHT BULB - INDICATOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOOTER RANGE -581904 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
9 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
9 |
CM179302 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
|||||||||
|
11 |
640549 - CATADIOPTRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/2/img/67872.jpg)
12 |
FLASHER-FRONT-LEFT/REAR-RIGHT "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -6402445 More informationQuantity required : 2 |
|||||||||
|
13 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/3/img/67873.jpg)
14 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -6402455 More informationQuantity required : 2 |
|||||||||
|
15 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
16 |
021210 - ECROU EX 319438 + S02121000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
17 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
18 |
016626 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/8/6/img/88986.jpg)
19 |
655817 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
21 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604 More informationQuantity required : 2 |
|||||||||
|
22 |
655819 - SUPPORT CLIGNOTANT AVT DR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/8/7/img/88987.jpg)
23 |
655818 - SUPPORT CLIGNOTANT AVT G More informationQuantity required : 1 |
|||||||||
|
24 |
655816 - SUPPORT CLIGNOTANT AVT DR More informationQuantity required : 1 |
|||||||||
|
25 |
655815 - SUPPORT CLIGNOTANT AVT G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
26 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/3/img/73403.jpg)
27 |
REGISTRATION PLATE LIGHT "PIAGGIO GENUINE PART" 250-300-400-500 MP3, PORTER, CARGO -D8127087Z01 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
28 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190 More informationQuantity required : 4 |
|||||||||
