Vehicle Exploded View - PIAGGIO MP3 300 4T 4V ie LT Ibrido 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

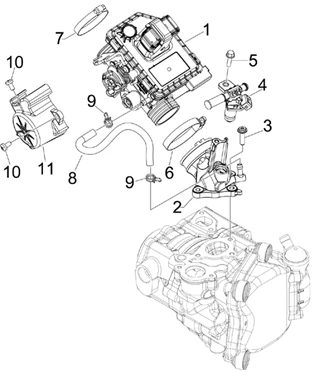

Moteur : 01.36 CORPS PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/13/MP3_300_4T_4V_ie_LT_Ibrido_2010-2011_01.36.PNG)
1 |
CM082505 - CORPS CLAPET DE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/1/0/img/94510.jpg)
2 |
INLET MANIFOLD "PIAGGIO GENUINE PART" 125 MP3 2008>2012, 300 MP3 2009>2012 -B013348 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
3 |
018639 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/3/3/7/img/93337.jpg)
4 |
INJECTOR "PIAGGIO GENUINE PART" 300-MP3 2010> -8792125- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/2/5/img/70425.jpg)
5 |
872269 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
6 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
7 |
614188 - COLLIER More informationQuantity required : 1 |
||||||
|
8 |
CM001307 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
9 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 2 |
||||||
|
10 |
1A003111 - VIS M5X10 More informationQuantity required : 2 |
||||||
|
10 |
1A003111 - VIS M5X10 More informationQuantity required : 2 |
||||||
|
11 |
876683 - PROTECTION More informationQuantity required : 1 |
